Features
- Designed for threading hardened steels 48-68Rc
- Single thread form designed to mill common pitch sizes
- Cuts internal and external 60 Degree metric threads
- Tip of included angle ground to a flat for increased wear resistance
- Large rigid core diameter and eccentric relief for improved strength
- Mills left hand and right hand threads
- h6 shank tolerance for high precision tool holders
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Select carbide grade for improved edge retention
- CNC ground in the USA

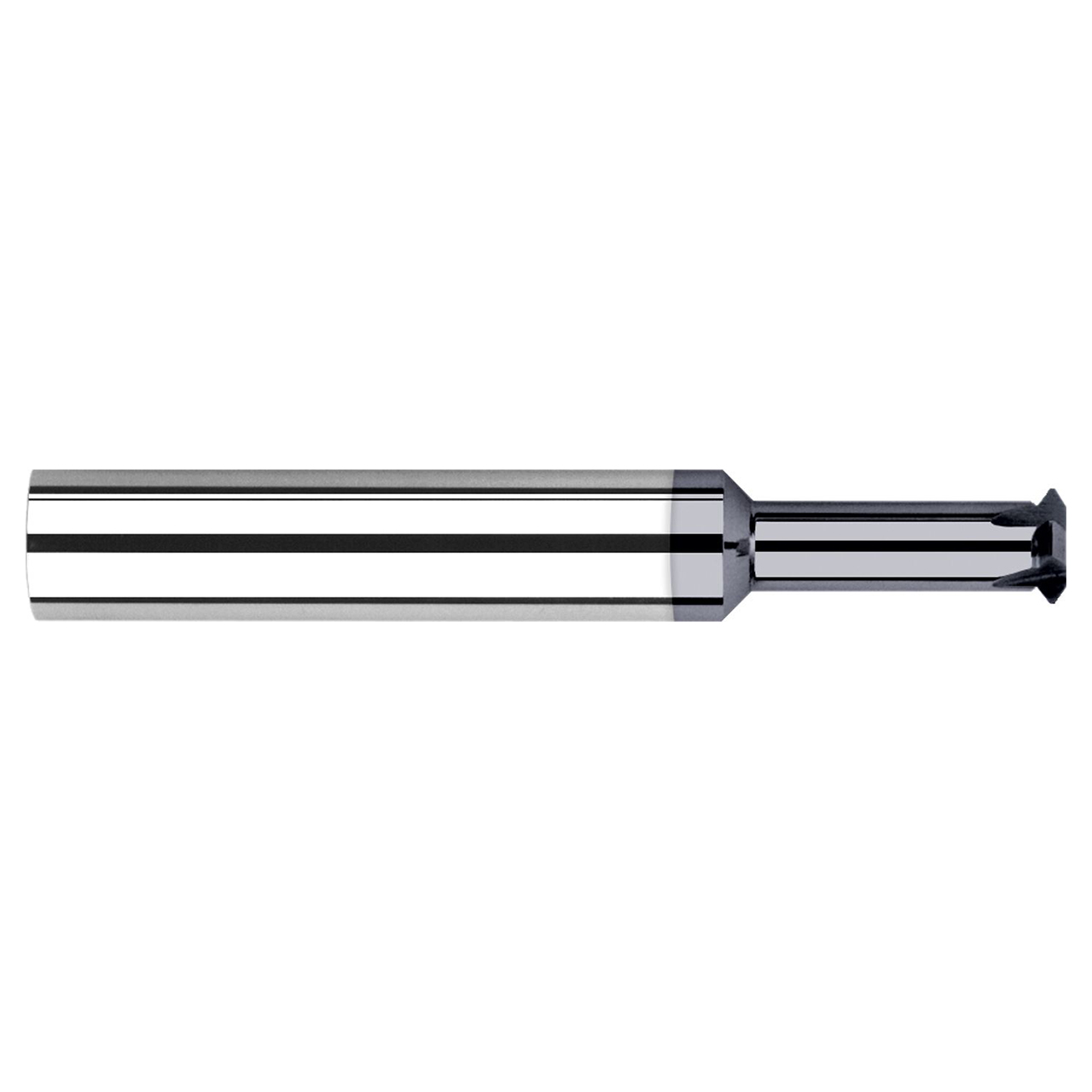

Product Specifications
| Manufacturer Part Number | 724230-C6 |
| Cutter Diameter (mm) | 4.800mm |
| Shank Diameter (mm) | 6.000mm |
| Neck Diameter (mm) | 3.360mm |
| Length of Cut (mm) | 1.109mm |
| Maximum Depth of Thread (mm) | 20.000mm |
| Overall Length (mm) | 63.000mm |
| Tip Flat (mm) | 0.100mm |
| Size | M6 |
| Angle per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 5 |
| Reach Multiple | (7x) |
| Coating | C6 |
| Profile | Single Form |
