Harvey Tool's offering of pointed and flat end chamfer cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass
Features- Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
- CNC ground in the USA

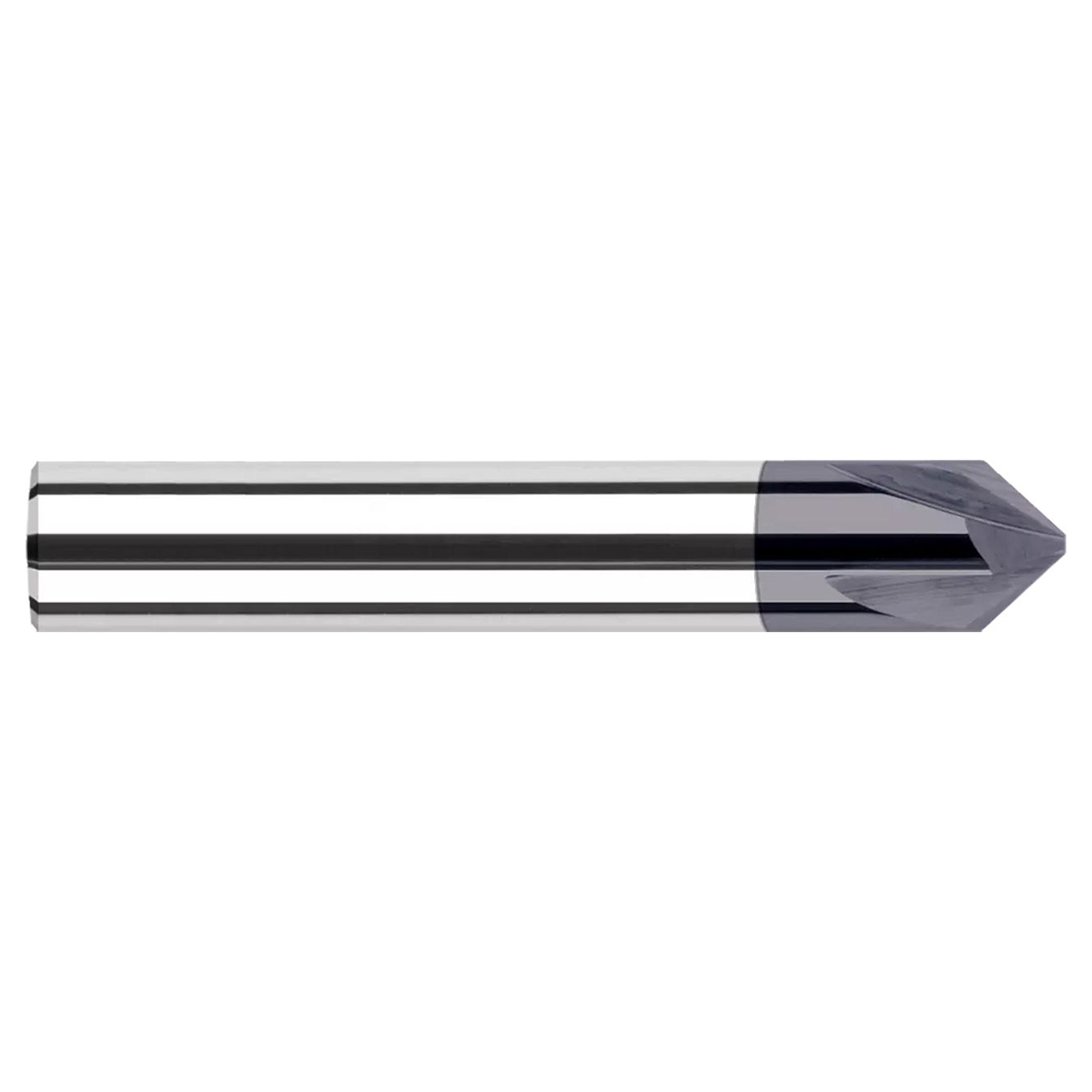

Product Specifications
| Manufacturer Part Number | 72428 |
| Length of Cut (Inch) | 0.1800" |
| Overall Length (Inch) | 2.0000" (2) |
| Tip (Inch) | 0.0100" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Angle per Side | 27.5 Degree |
| Included Angle | 55 Degree |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Center Cutting | Yes |
| Type | I |
| Profile | Pointed |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Center Cutting:
Yes
Length of Cut (Decimal Inch):
0.1800"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Included Angle:
55 Degree
Number of Flutes:
2
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
