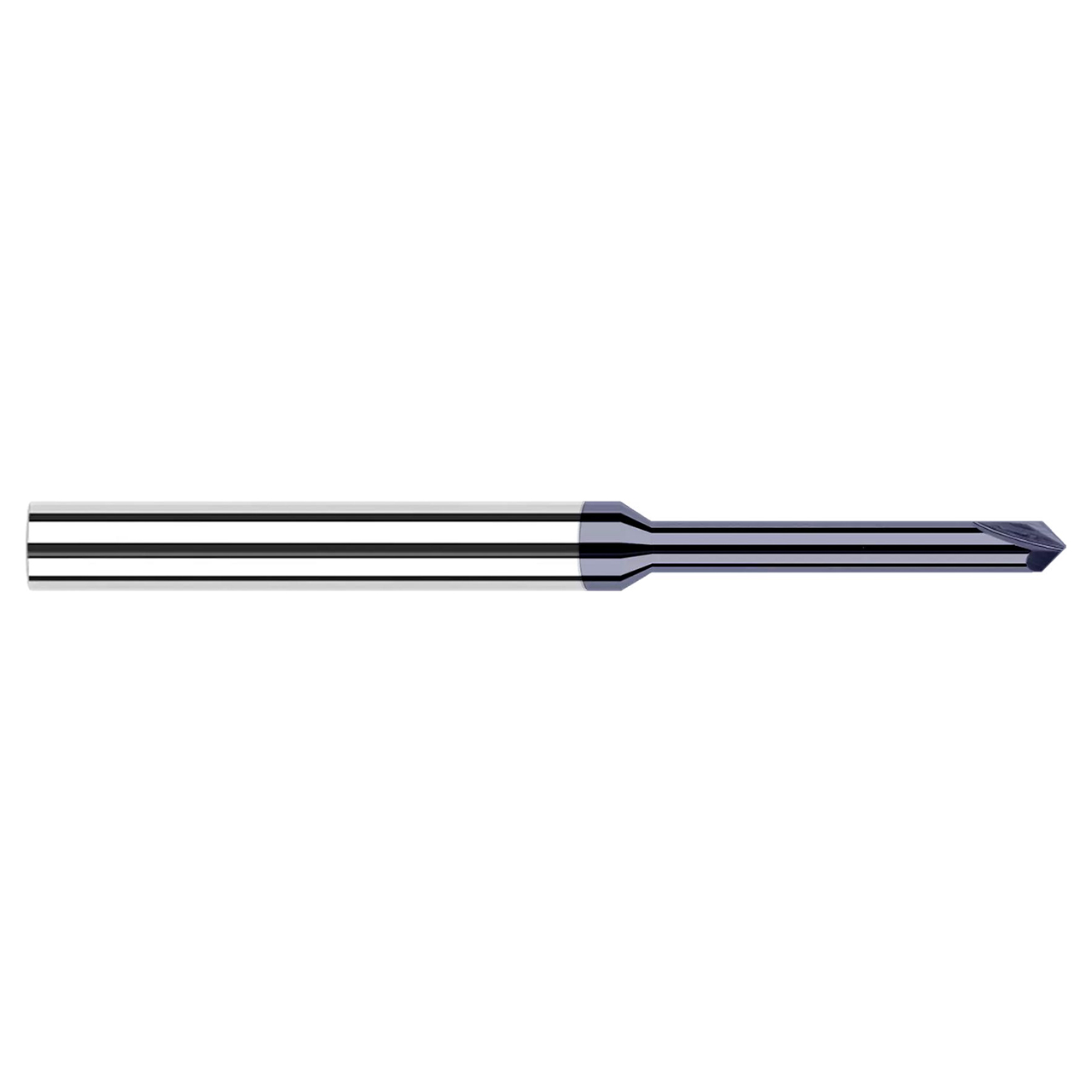

Harvey Tool 725345-C3 | 0.0470" (3/64) Neck Diameter x 0.0240" LOC x 0.7100" Reach 2 Flute 45 Degree C3 Coated Chamfer Mill

$49.80
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0470"
Length of Cut (Decimal Inch):
0.0240"
Overall Reach (Decimal Inch):
0.7100"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Included Angle:
90 Degree
Number of Flutes:
2
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25256797
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Features
  • Reduced diameter for clearance along walls and in small features
  • Type I pointed style ground to a point, yielding web thickness at tip (T)
  • 2 flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number725345-C3
Neck Diameter (Inch)0.0470" (3/64)
Length of Cut (Inch)0.0240"
Overall Reach (Inch)0.7100"
Overall Length (Inch)2.5000" (2-1/2)
Tip (Inch)0.0050"
Shank Diameter (Inch)0.1250" (1/8)
Angle per Side45 Degree
Included Angle90 Degree
Number of Flutes2
Reach Multiple(15x)
CoatingC3
TypeI
ProfilePointed

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
