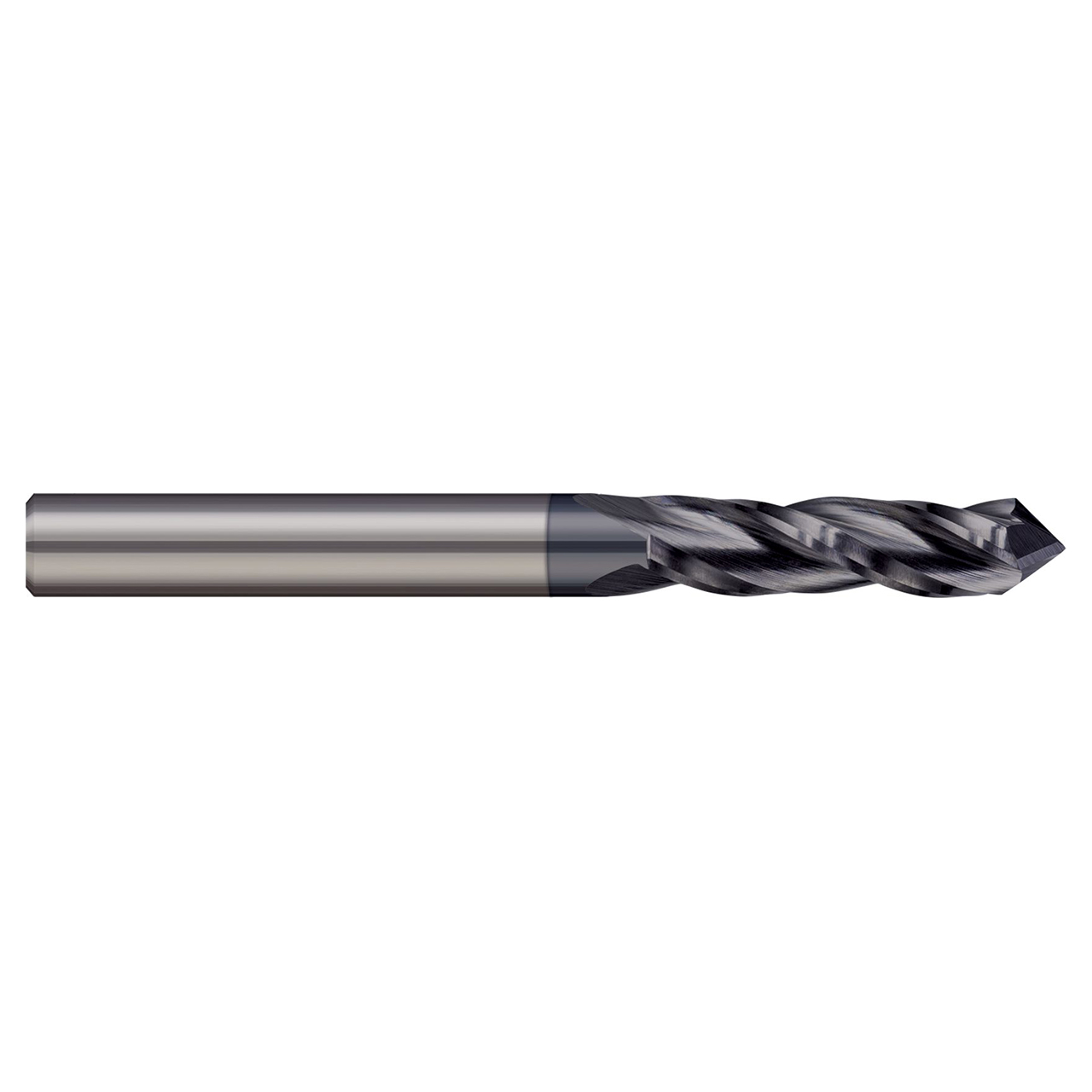

Designed for chamfering, milling, and some spotting applications, the drill/end mills - 3 Flute offering features solid carbide, fully stocked tooling with a 90 Degree included angle and two coating styles: uncoated, or AlTiN coated for added lubricity.
Features- Designed for chamfering, milling, and some spotting applications
- Not recommended for drilling
- 3 flutes to center
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 725516-C3 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Angle per Side | 41 Degree |
| Included Angle | 82 Degree |
| Number of Flutes | 3 |
| LOC Multiple | (3x) |
| Coating | C3 |
| Profile | Mill Style |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Included Angle:
82 Degree
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
