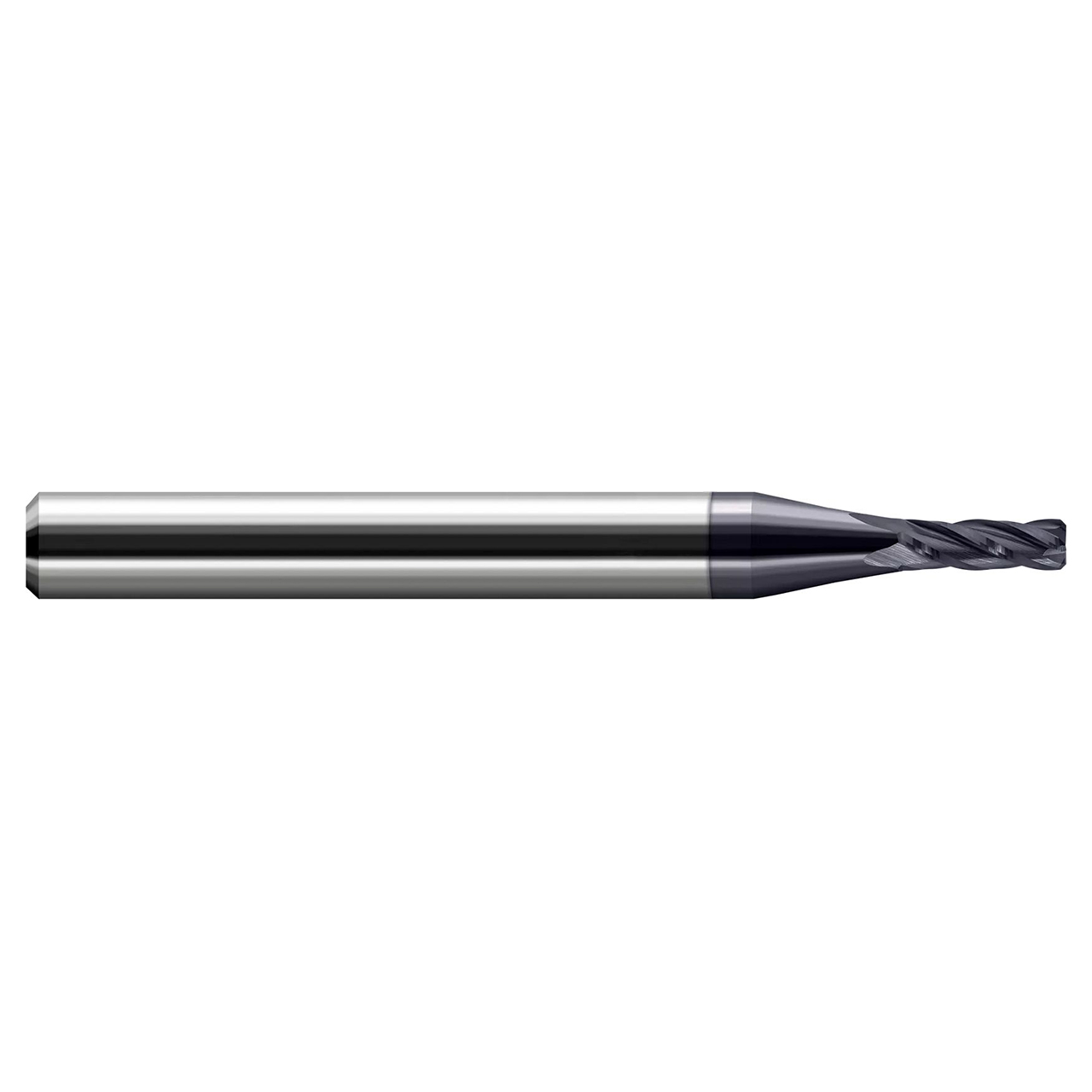

Harvey Tool 727293-C3 | 0.0930" (3/32) Cutter Diameter x 0.0100" Corner Chamfer x 0.1400" (9/64) LOC 4 Flute C3 Coated Corner Chamfer Miniature End Mill

$33.40
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Number of Flutes:
4
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
interval quantity:
1
SKU:
25256813
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Harvey Tool corner chamfer end mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.

Features
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number727293-C3
Cutter Diameter (Inch)0.0930" (3/32)
Length of Cut (Inch)0.1400" (9/64)
Overall Length (Inch)1.5000" (1-1/2)
Chamfer Length (Inch)0.0100"
Shank Diameter (Inch)0.1250" (1/8)
Angle per Side45 Degree
Number of Flutes4
LOC Multiple(1.5x)
CoatingC3
Center CuttingNo
ProfileCorner Chamfer
