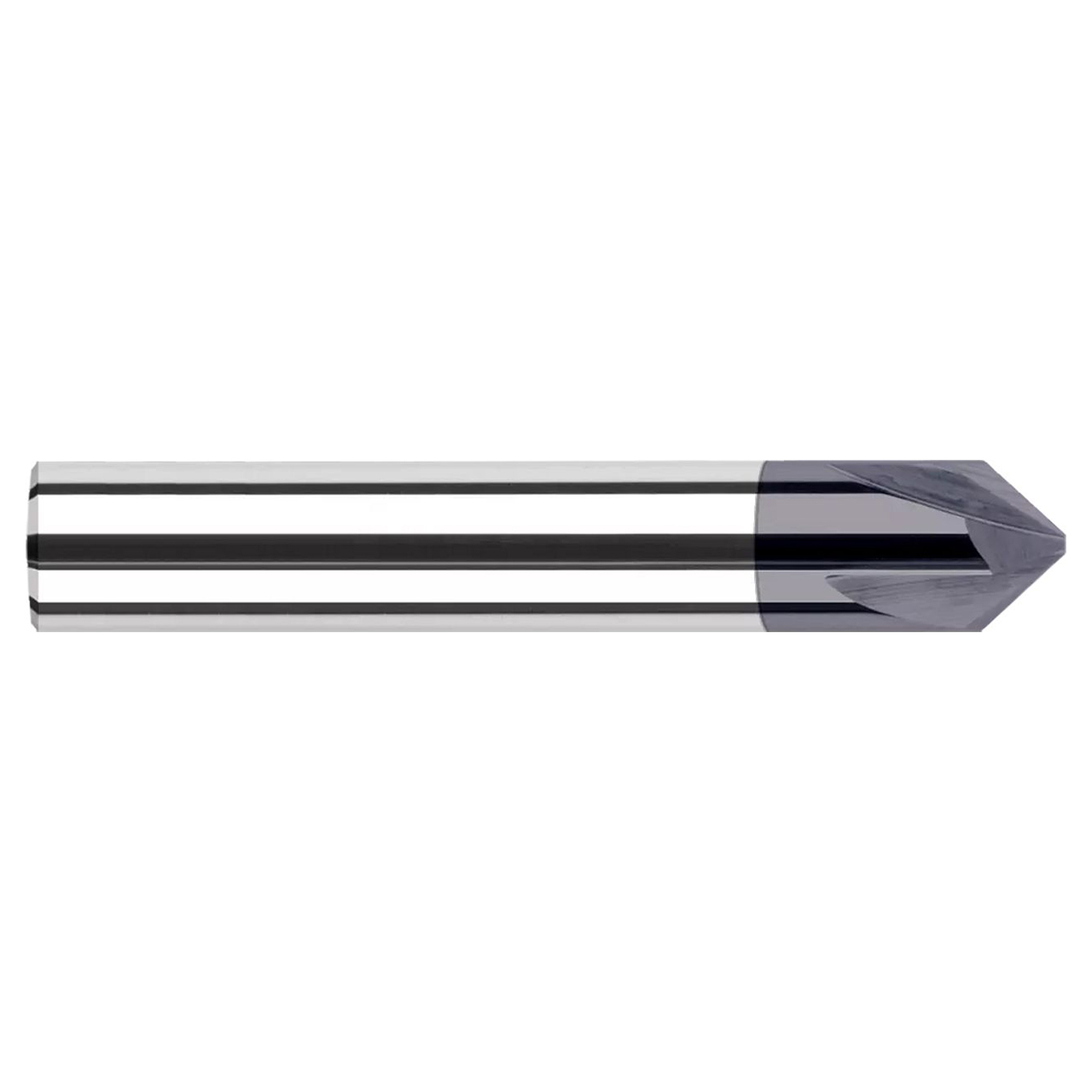

Harvey Tool 743145-C3 | 0.2500" (1/4) Shank x 2.5000" (2-1/2) OAL x 90 Degree 4 Flutes AlTIN Coated Carbide Chamfer Cutter

$55.40
SKU:
25232625
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Harvey Tool's offering of pointed and flat end Chamfer Cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass.

  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
  • CNC ground in the USA

Product Specifications
Tool Number743145-C3
Length of Cut (Inch)0.1200"
Overall Length (Inch)2.5000" (2-1/2)
Tip (Inch)0.0100"
Angle per Side45
Included Angle90
Flutes4
TypeI
Shank Diameter (Inch)0.2500" (1/4)
CoatingC3
Center CuttingY
