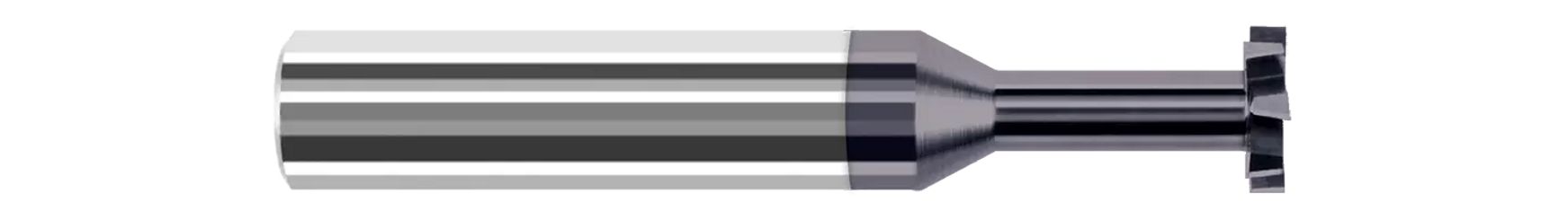

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Keyseat Cutters Down to 1/16" Diameter
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3120" (5/16) |
| Neck Diameter (Inch) | 0.1560" (5/32) |
| Cutter Width (Inch) | 0.0620" (1/16) |
| Neck Length (Inch) | 0.4690" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radial Depth of Cut (Inch) | 0.0680" |
| Number of Flutes | 6 |
| Reach Multiple | 1.5x |
| Type | I |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3120"
Neck Diameter (Inch):
5/32"
Neck Diameter (Decimal Inch):
0.1560"
Number of Flutes:
6
Cutter Width (Inch):
1/16"
Cutter Width (Decimal Inch):
0.0620"
Neck Length (Decimal Inch):
0.4690"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
Uncoated
