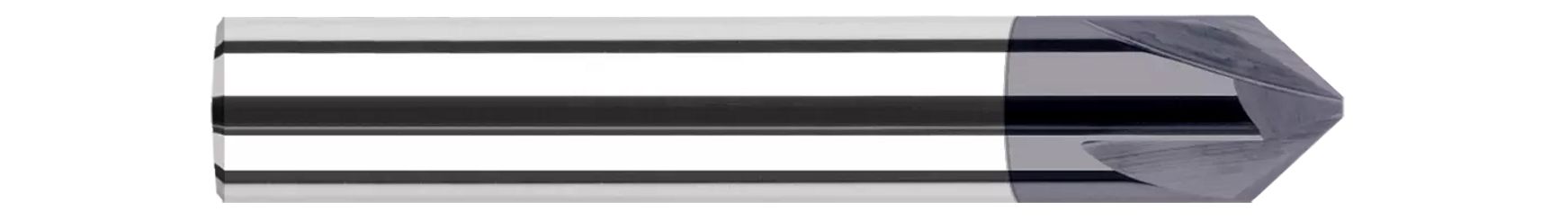

Harvey Tool 763645-C3 | 5/8" Shank 90 Degree Included Angle 4 Flute AlTiN Coated Carbide Chamfer Mill

$158.80
Brand:
Harvey Tool
Length of Cut (Decimal Inch):
0.2730"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Included Angle:
90 Degree
Number of Flutes:
4
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25186794
UPC:
Weight:
0.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
763645-C3

Flat, which is non-end cutting, and optimized for profiling and chamfering larger features.

  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features

Product Specifications
Length of Cut (Inch)0.2730"
Overall Length (Inch)3.5000" (3-1/2)
Tip0.0800"
Number of Flutes4
Angle per Side45
Included Angle90
TypeII
Shank Diameter (Inch)0.6250" (5/8)
Coating/FinishC3
