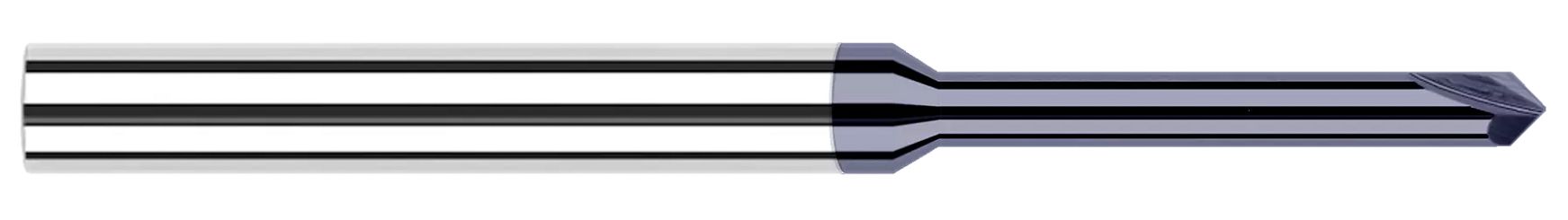

pointed, which is great for chamfering and deburring in small and narrow areas.
- Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
Product Specifications
| Neck Diameter (Inch) | 0.0200" (.5 mm) |
| Length of Cut (Inch) | 0.0100" |
| Overall Reach (Inch) | 0.2000" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip | 0.0030" |
| Number of Flutes | 2 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Reach Multiple | 10x |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
