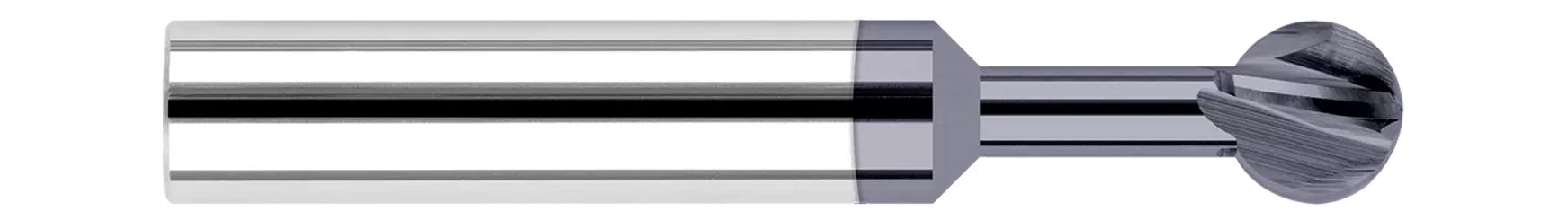

Harvey Tool 767862 | 300 Degree Sperical Ball 1/16" Diameter x 1/8" Shank x 0.0578" LOC x 1-1/2" OAL 2 Flute Uncoated Carbide Undercutting End Mill

$48.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25185989
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The 270 Degree spherical ball on this solid carbide Undercutting End Mill is ideal for deburring complex shapes, and multi-axis machining. Deburr right in your CNC machine with these high-precision burs held to end mill tolerances, and stop scrapping expensive parts due to handheld operator errors.

  • 270 Degree spherical ball is ideal for deburring complex shapes and multi-axis machining
  • Deburr in your CNC machine with these high-precision burs held to end mill tolerances
  • Stop scrapping expensive parts due to handheld operator errors
  • High flute count allows for increased feeds which reduces cycle times
  • Achieve better finish than with milling-type cutters
  • Double cut style flute pattern
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0625" (1/16)
Neck Diameter (Inch)0.0240" (.6 mm)
Length of Cut (Inch)0.0578"
Neck Length (Inch)0.2500" (1/4)
Overall Reach (Inch)0.3080"
Overall Length (Inch)1.5000" (1-1/2)
Radius0.0312" (1/32)
Number of Flutes2
Wrap Angle300
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
