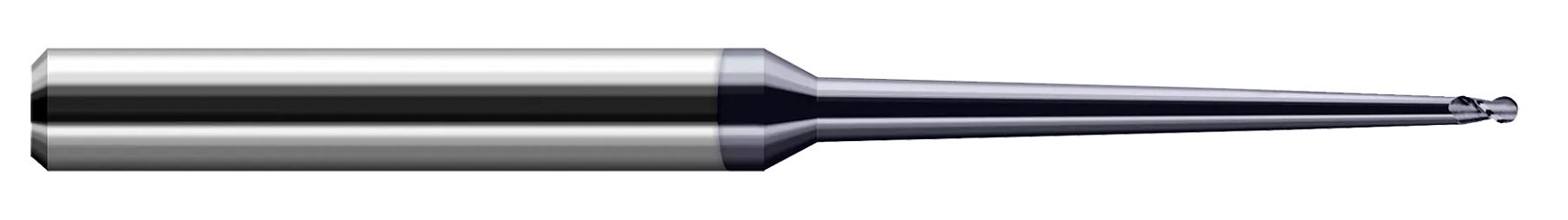

Harvey Tool 775262-C6 | 1/16" Diameter x 1/4" Shank x 3/32" LOC x 4" OAL 4 Flute AlTiN Nano Coated Carbide Ball End Mill

$91.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25186814
Weight:
0.07 LBS
Shipping:
Free Shipping

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0620" (1/16)
Neck Diameter (Inch)0.1680"
Minor Diameter (Inch)0.0570"
Length of Cut (Inch)0.0930" (3/32)
Neck Length (Inch)0.0620" (1/16)
Tapered Reach (Inch)1.7500" (1-3/4)
Overall Reach (Inch)2.0000" (2)
Overall Length (Inch)4.0000" (4)
Number of Flutes4
Neck Angle2
LOC Multiple1.5x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC6

Technical Files

Safety Data Sheet North America (SDS NA)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
