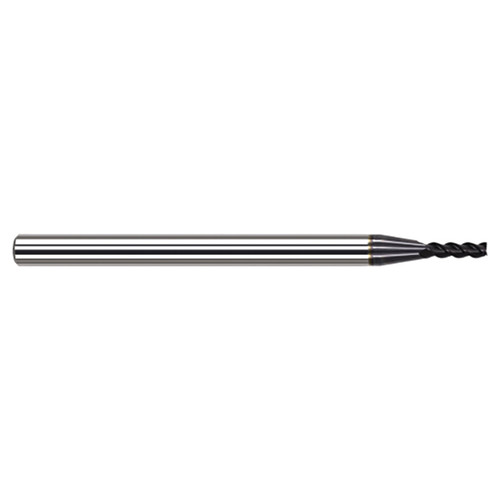

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.
- Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- Suitable for steels up to 45Rc
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0200" (.5 mm) |
| Length of Cut (Inch) | 0.0600" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0030" |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
