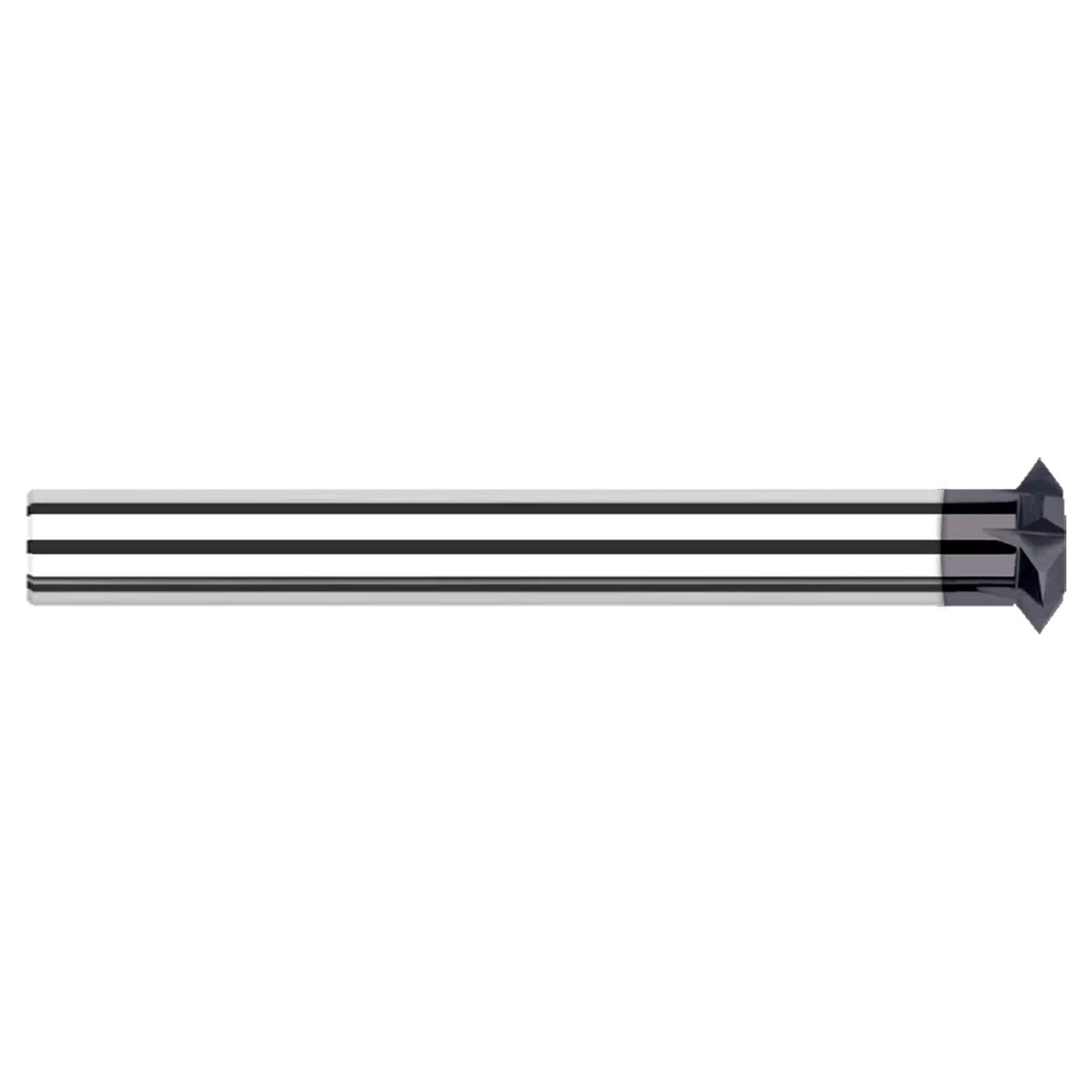

Harvey Tool 777903 | 0.2500" (1/4) Cutter Diameter x 0.1250" (1/8) Width x 4.1250" (4-1/8) OAL 6 Flute Uncoated Double Angle Shank Cutter

$109.20
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Included Angle:
90 Degree
Number of Flutes:
6
Cutter Width (Inch):
1/8"
Cutter Width (Decimal Inch):
0.1250"
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25256645
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Features
  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Reduced straight shank allows any chucking depth
  • Tip of included angle ground to a point
  • 60 Degree angle can also be used for thread milling
  • Solid carbide head brazed onto steel shank
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number777903
Cutter Diameter (Inch)0.2500" (1/4)
Cutter Width (Inch)0.1250" (1/8)
Overall Length (Inch)4.1250" (4-1/8)
Shank Diameter (Inch)0.1250" (1/8)
Angle per Side45 Degree
Included Angle90 Degree
Number of Flutes6
CoatingUncoated
ProfilePointed

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Included Angle:
90 Degree
Number of Flutes:
6
Cutter Width (Inch):
1/8"
Cutter Width (Decimal Inch):
0.1250"
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
interval quantity:
1
