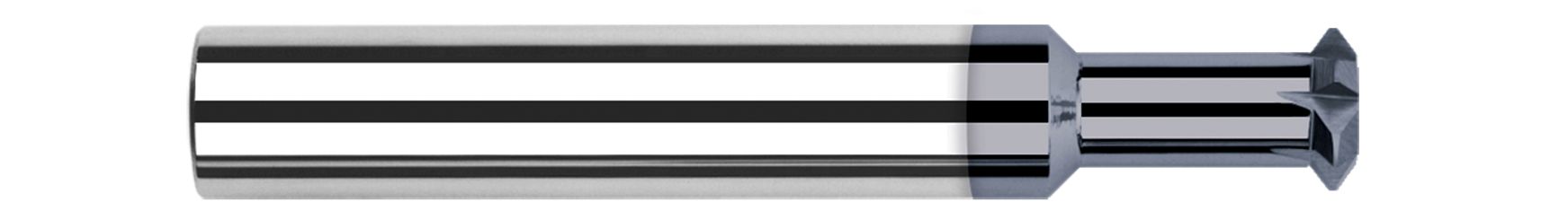

This offering of Harvey Tool Double Angle Shank Cutters, featuring a tip flat, is engineered to improve strength and wear resistance and feature a reduced neck for long reach machining. Use this tool for back chamfering, chamfering, deburring, and milling a "V groove" into parts.
- Ideal for back chamfering, chamfering, deburring, and milling a “V-groove”
- Flat on tip for improved strength and wear resistance
- Reduced neck for long reach machining
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.0620" (1/16) |
| Cutter Width (Inch) | 0.0460" |
| Neck Length (Inch) | 0.1870" (3/16) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Tip Flat | 0.0100" |
| Number of Flutes | 4 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Inch):
1/16"
Neck Diameter (Decimal Inch):
0.0620"
Included Angle:
60 Degree
Number of Flutes:
4
Cutter Width (Decimal Inch):
0.0460"
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1870"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
