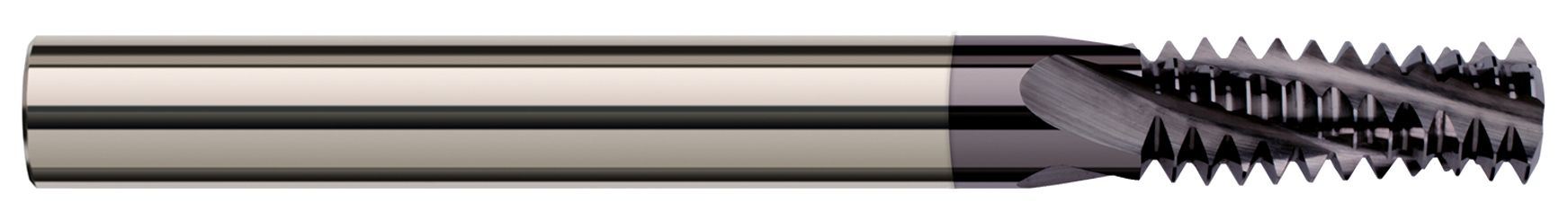

This offering of Harvey Tool Thread Milling Cutters - Multi-Form is engineered to create internal and external National Pipe Taper (N,P.T.F.) threads. These helically fluted, solid carbide tools can cut both right and left hand threads.
- Cuts internal and external 60° National Pipe Taper (N.P.T.F.) threads
- Mills right hand and left hand threads
- Helical flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6200" |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 4 |
| Angle per Side | 1°47' |
| Included Angle | 60 |
| Size | 1, 2-11.5 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
