Harvey Tool 795193 | 0.0930" (3/32) Cutter DIA x 0.1400" (9/64) Length of Cut x 0.5850" Reach Carbide Ball End Mill, 4 Flutes, CVD Diamond 9µm

$150.10
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0900"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Overall Reach (Decimal Inch):
0.5850"
Number of Flutes:
4
Finish/Coating:
C5
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
SKU:
25176790
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

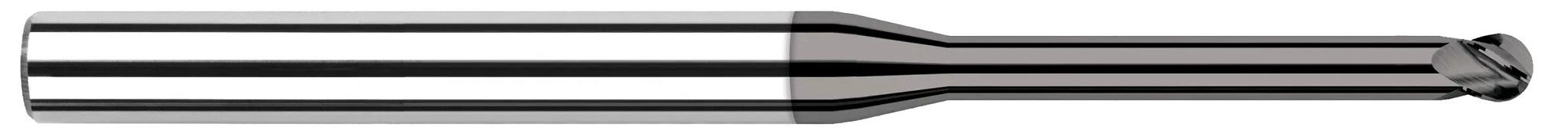

Photograph of a Harvey Tool 795193 | 0.0930" (3/32) Cutter DIA x 0.1400" (9/64) Length of Cut x 0.5850" Reach Carbide Ball End Mill, 4 Flutes, CVD Diamond 9µm
Harvey Tool 795193 | 0.0930" (3/32) Cutter DIA x 0.1400" (9/64) Length of Cut x 0.5850" Reach Carbide Ball End Mill, 4 Flutes, CVD Diamond 9µm. From the Harvey Tool Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball - Long Reach, Stub Flute product family.

Warning: This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm. for more information, visit www.P65Warnings.ca.gov

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0900"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Overall Reach (Decimal Inch):
0.5850"
Number of Flutes:
4
Finish/Coating:
C5
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
