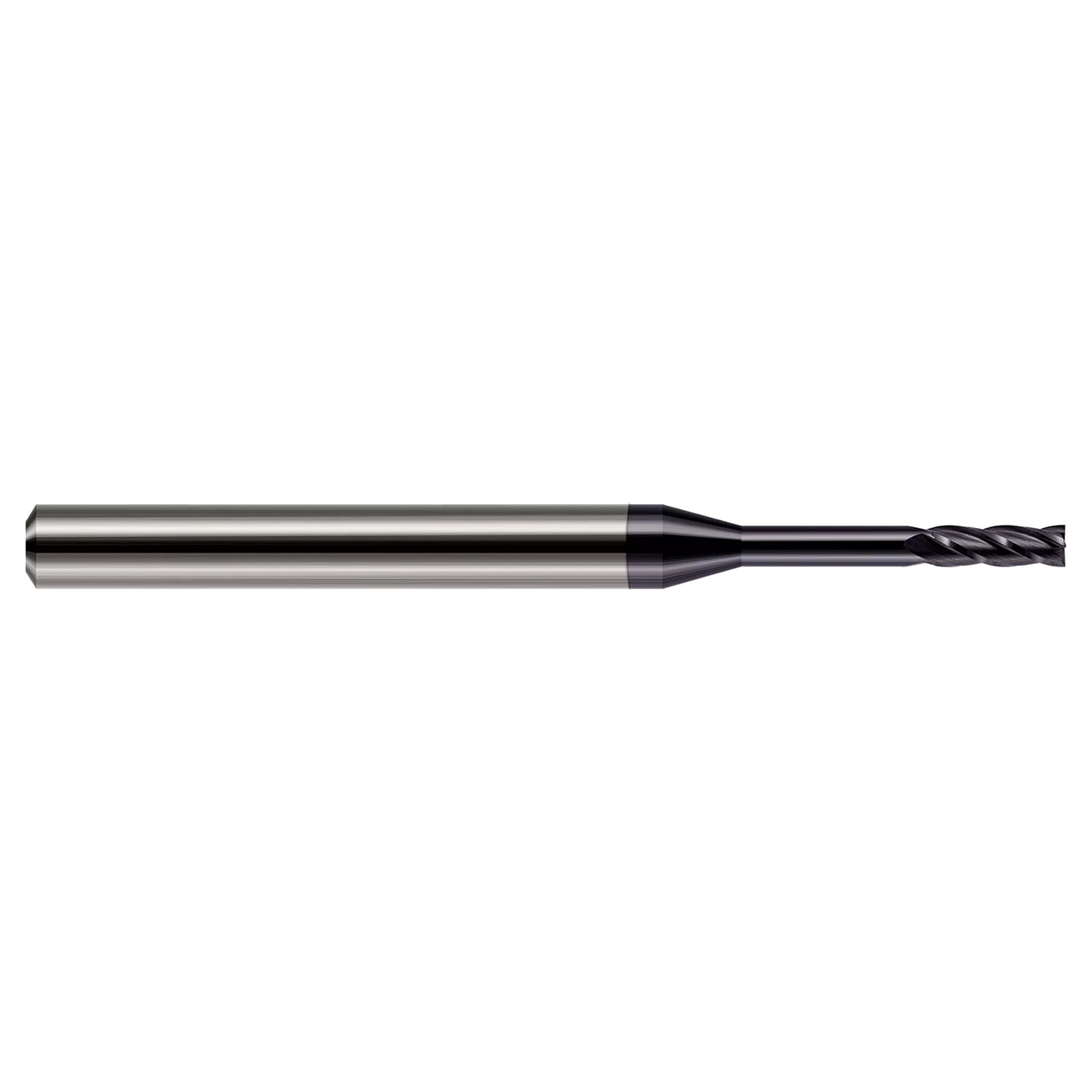

Miniature end mills - square - long reach, standard flute feature a reduced neck diameter to avoid heeling.
Features- Length of Cut = 3x Diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 802510 |
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Neck Diameter (Inch) | 0.1520" |
| Length of Cut (Inch) | 0.4700" |
| Overall Reach (Inch) | 0.9370" (15/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Number of Flutes | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (6x) |
| Coating | Uncoated |
| Profile | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1520"
Shank Diameter (Inch):
3/16"
Length of Cut (Decimal Inch):
0.4700"
Overall Reach (Inch):
15/16"
Overall Reach (Decimal Inch):
0.9370"
Number of Flutes:
4
Finish/Coating:
Uncoated
Neck Length (Decimal Inch):
0.4670"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
