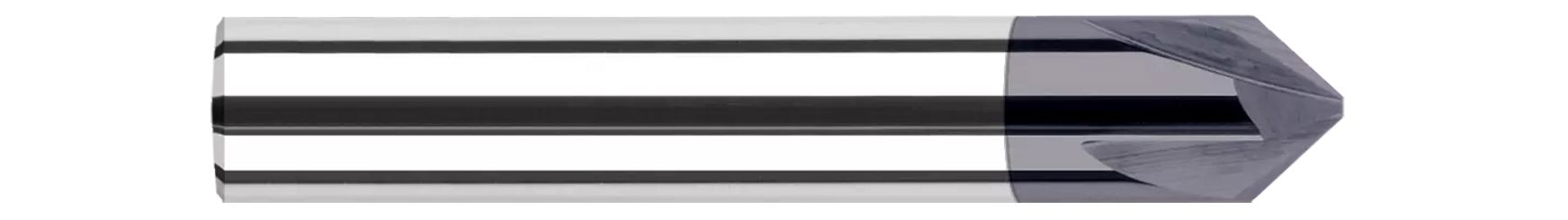

Flat, which is non-end cutting, and optimized for profiling and chamfering larger features.
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
Product Specifications
| Length of Cut (Inch) | 0.0740" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Tip | 0.0400" |
| Number of Flutes | 4 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Type | III |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
| Center Cutting | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Center Cutting:
Yes
Length of Cut (Decimal Inch):
0.0740"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
