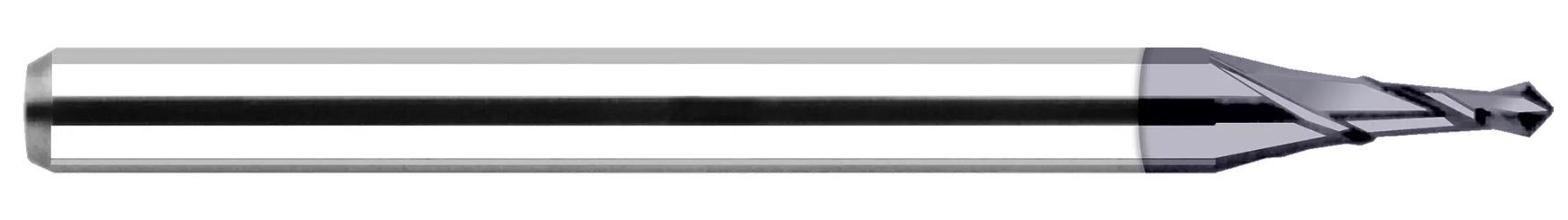

Harvey Tool's comprehensive selection of Spotting Drills.
- 90 Degree available in long length.
- Thinned Web to Reduce Walking
- Self-Centering Point Geometry
- 2 Flutes
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (Inch) | 0.1875" (3/16) |
| Flute Length (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| Angle per Side | 45 |
| Included Angle | 90 |
| LOC Multiple | 3x |
| Web Thickness | 0.0130" |
| Type | I |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
