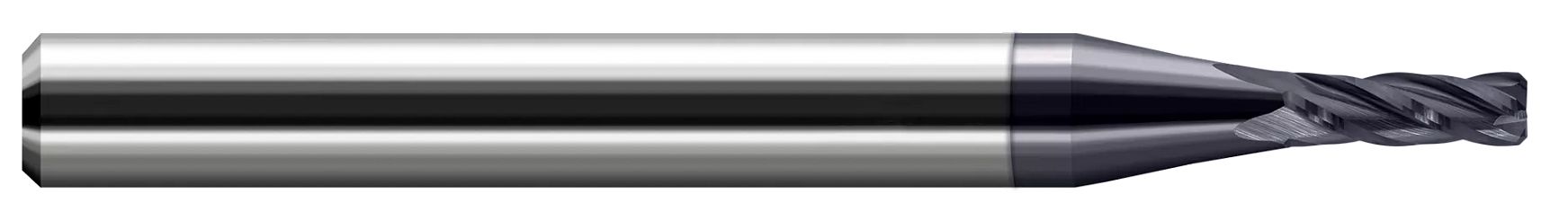

Harvey Tool Corner Chamfer End Mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.
- Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
- 45 Degree corner chamfer protects corners on the end mill and can create small chamfers and edge breaks
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Length of Cut (Inch) | 0.2790" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Chamfer | 0.0050" |
| Number of Flutes | 4 |
| Angle per Side | 45 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
