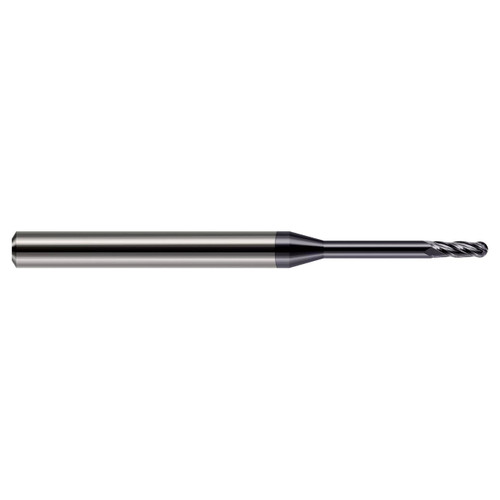

The reduced neck diameter featured in this line of Harvey Tool Miniature End Mills - Ball - Long Reach, Standard Flute product helps to avoid heeling.
- CNC ground in the USA
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 805720-C3 |
| Cutter Diameter (Inch) | 0.0200" (.5 mm) |
| Neck Diameter (Inch) | 0.0192" |
| Length of Cut (Inch) | 0.0600" |
| Neck Length (Inch) | 0.0600" |
| Overall Reach (Inch) | 0.1200" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Flutes | 4 |
| LOC Multiple | 3x |
| Reach Multiple | 6x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C3 |
