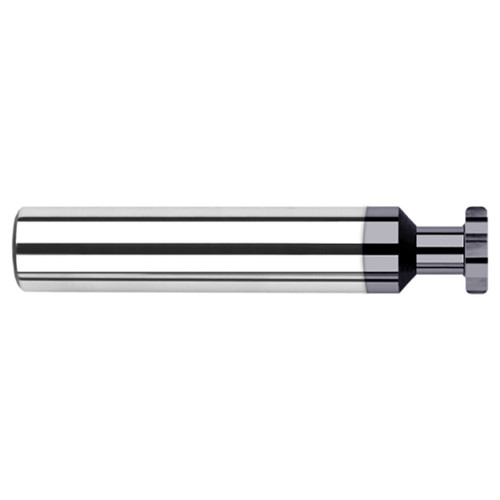

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Keyseat Cutters Down to 1/16" Diameter
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.0620" (1/16) |
| Cutter Width (Inch) | 0.0620" (1/16) |
| Neck Length (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radial Depth of Cut (Inch) | 0.0220" |
| Number of Flutes | 6 |
| Reach Multiple | 1x |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Inch):
1/16"
Neck Diameter (Decimal Inch):
0.0620"
Number of Flutes:
6
Cutter Width (Inch):
1/16"
Cutter Width (Decimal Inch):
0.0620"
Neck Length (Inch):
1/8"
Neck Length (Decimal Inch):
0.1250"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
