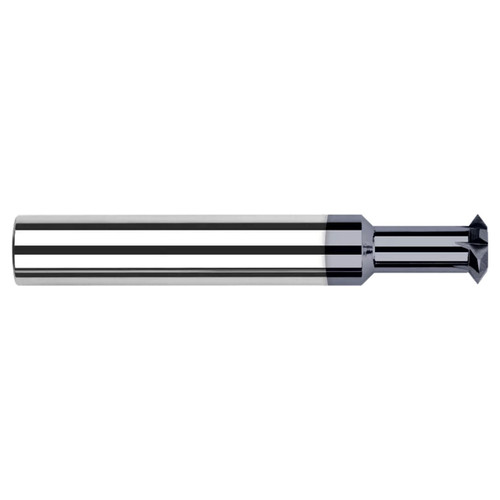

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 80763M |
| Cutter Diameter (Inch) | 0.1180" (3 mm) |
| Neck Diameter (Inch) | 0.0590" (1.5 mm) |
| Cutter Width (Inch) | 0.0590" |
| Neck Length (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 2 |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | Uncoated |
