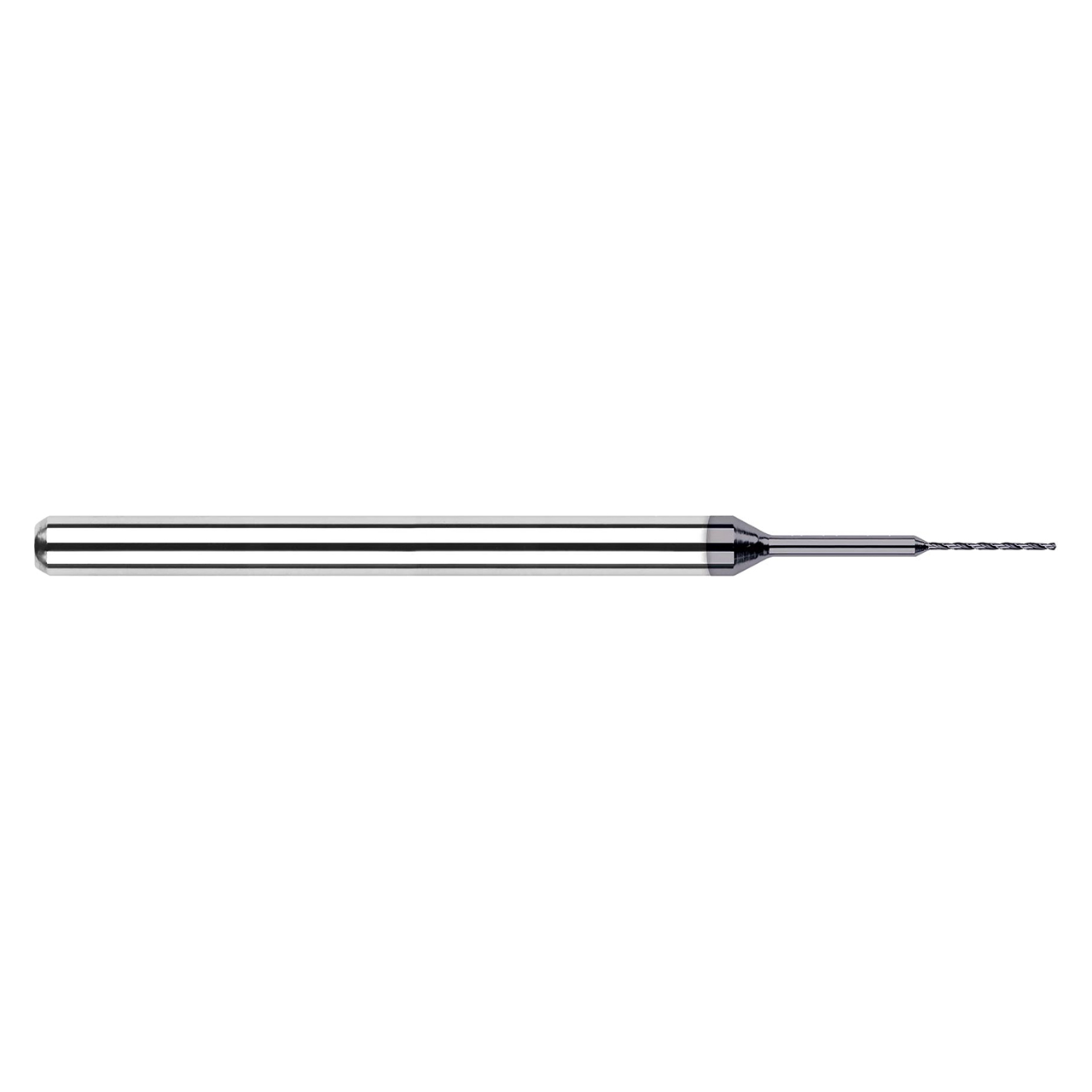

Product Specifications
| Manufacturer Part Number | 810197 |
| Drill Diameter (Decimal Inch) | 0.020" |
| Drill Diameter (mm) | 0.50mm |
| Neck Diameter (Decimal Inch) | 0.028" |
| Neck Diameter (mm) | 0.70mm |
| Flute Length (Decimal Inch) | 0.135" |
| Overall Reach (Decimal Inch) | 0.250" |
| Overall Reach (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Point Angle (Degree) | 130 Degree |
| Number of Flute | 2 |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | Uncoated |
| Product Type | Miniature Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Drill Point Angle:
130 Degree
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Interval quantity:
1
