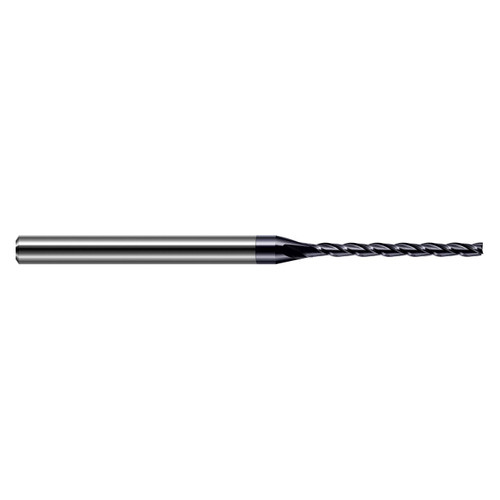

Harvey Tool 810375 | 0.075" Diameter x 1/8" Shank x 0.531" LOC x 2-1/2" OAL 4 Flute Uncoated Square End Mill

$32.60
Brand:
Harvey Tool
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0750"
Mill Diameter (mm):
1.90mm
Number of Flutes:
4
Length of Cut (Inch):
17/32"
Length of Cut (Decimal Inch):
0.5310"
Length of Cut (mm):
13.49mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
SKU:
25352531
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool 810375 | 0.075" Diameter x 1/8" Shank x 0.531" LOC x 2-1/2" OAL 4 Flute Uncoated Square End Mill

Product Specifications
Manufacturer Part Number810375
Cutter Diameter (Decimal Inch)0.075"
Cutter Diameter (mm)1.90mm
Length of Cut (Decimal Inch)0.531"
Length of Cut (Inch)17/32"
Overall Length (Decimal Inch)2.500"
Overall Length (Inch)2-1/2"
Number of Flute4
LOC Multiple(7x)
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (Inch)1/8"
MetricNo
CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0750"
Mill Diameter (mm):
1.90mm
Number of Flutes:
4
Length of Cut (Inch):
17/32"
Length of Cut (Decimal Inch):
0.5310"
Length of Cut (mm):
13.49mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
