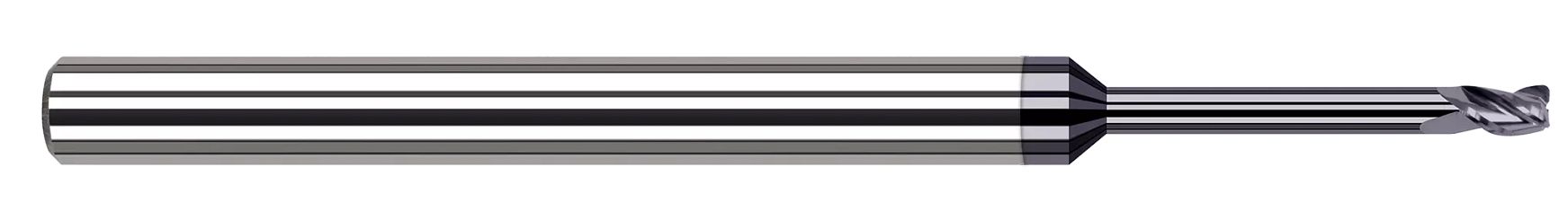

Harvey Tool 812131-C6 | 1/32" Diameter x 1/8" Shank x 3/64" LOC x 2-1/2" OAL 0.0050" Radius 4 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

$66.10
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/32"
Cutter Diameter (Decimal Inch):
0.0310"
Neck Diameter (Decimal Inch):
0.0300"
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Overall Reach (Inch):
5/32"
Overall Reach (Decimal Inch):
0.1560"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C6
interval quantity:
1
SKU:
25174990
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
812131-C6

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.

  • Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45Rc
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0310" (1/32)
Neck Diameter (Inch)0.0300"
Length of Cut (Inch)0.0470" (3/64)
Overall Reach (Inch)0.1560" (5/32)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Corner Radius0.0050"
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishC6
