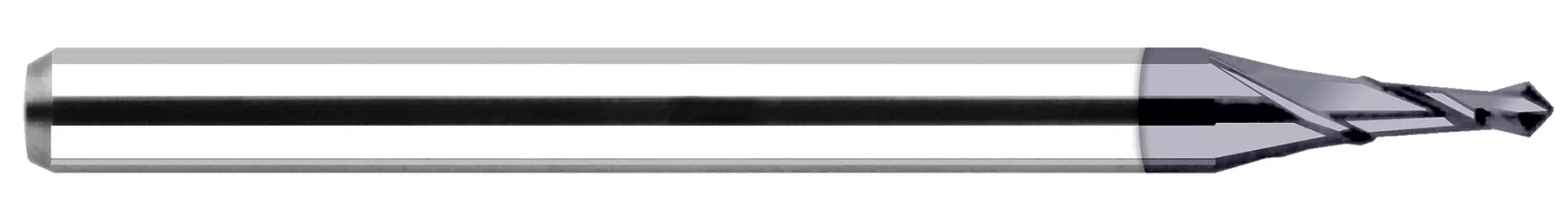

Harvey Tool's comprehensive selection of Spotting Drills.
- 90 Degree available in long length.
- Thinned Web to Reduce Walking
- Self-Centering Point Geometry
- 2 Flutes
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (Inch) | 0.0200" (.5 mm) |
| Flute Length (Inch) | 0.0300" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 2 |
| Angle per Side | 45 |
| Included Angle | 90 |
| LOC Multiple | 1.5x |
| Web Thickness | 0.0020" |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
