Product Specifications
| Manufacturer Part Number | 820250-C3 |
| Length of Cut (Decimal Inch) | 0.176" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Tip Diameter (Decimal Inch) | 0.080" |
| Angle per Side (Degree) | 50 Degree |
| Included Angle (Degree) | 10 Degree |
| Number of Flute | 4 |
| Type | III |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Metric | No |
| Coating | C3 |
| Center Cutting | Yes |

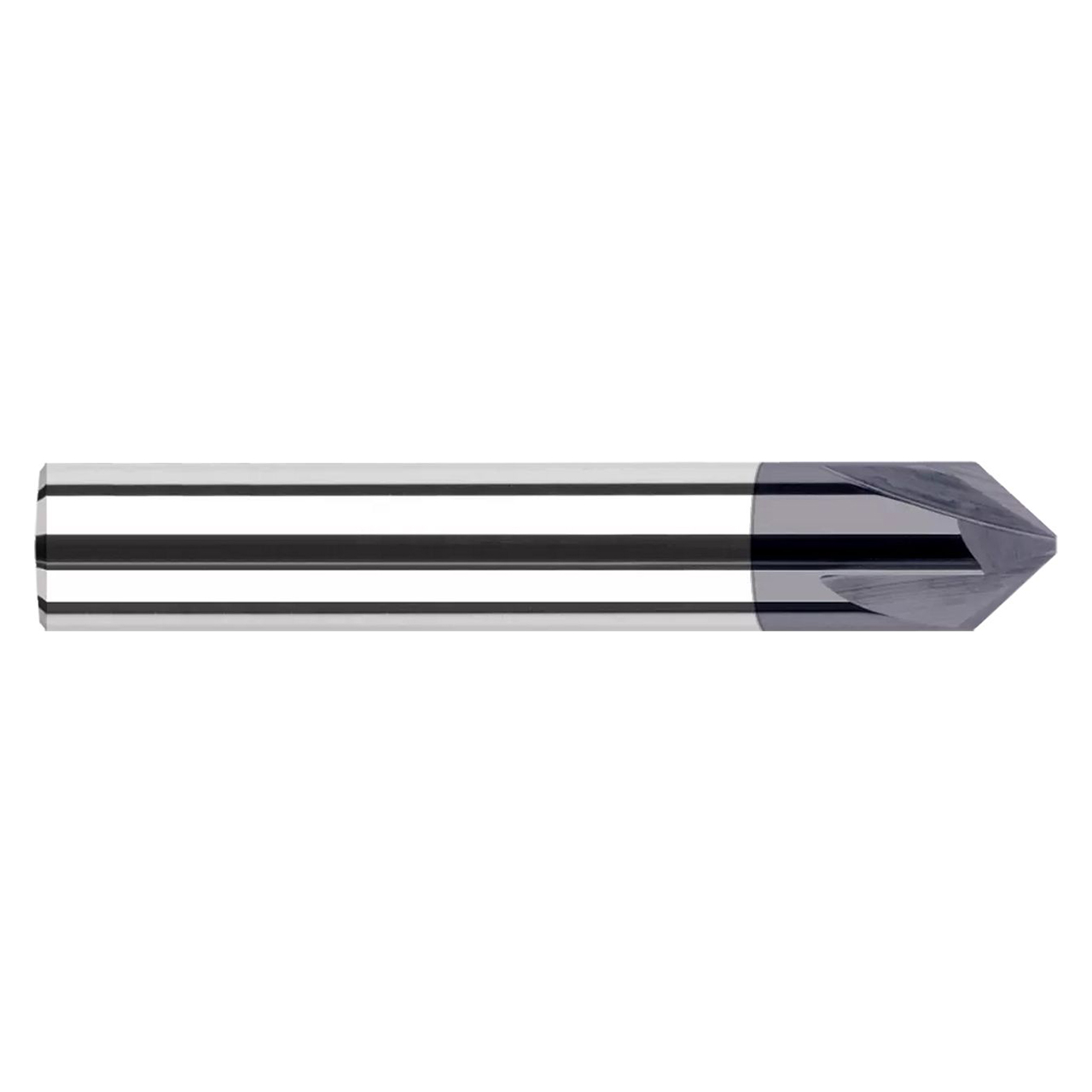

| Product Type | Chamfer Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle A:
10 Degree
Finish/Coating:
C3
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Number of Flutes:
4
Interval quantity:
1
