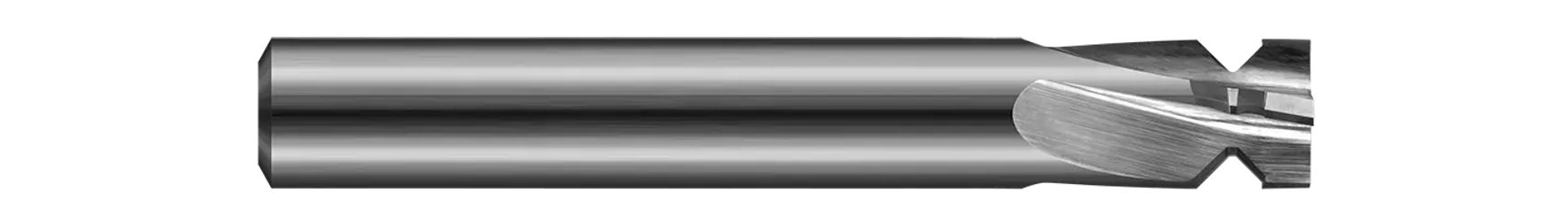

Picatinny Rail Form Cutters are designed to MIL-STD-1913 specifications. Mill the entire Picatinny Rail in a single pass without tool changes, cutting on entirety of the concave form and OD flat at the tool's end.
- Designed to the MIL-STD-1913 specifications
- Mill the entire Picatinny Rail in a single pass without tool changes
- Cutting on the entirety of concave form and OD flat at end
- 4 helical flutes for better cutting action
- .005" max radii for all internal corners
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Minor Diameter (Inch) | 0.2820" |
| Length of Cut (Inch) | 0.3770" |
| Overall Length (Inch) | 3.0000" (3) |
| Min Opening Width (Inch) | 0.0210" |
| End Length (Inch) | 0.1370" |
| Radius | 0.0050" |
| Number of Flutes | 4 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Type | II |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | C8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Radius (Decimal Inch):
0.0050"
Included Angle:
90 Degree
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.3770"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
C8
