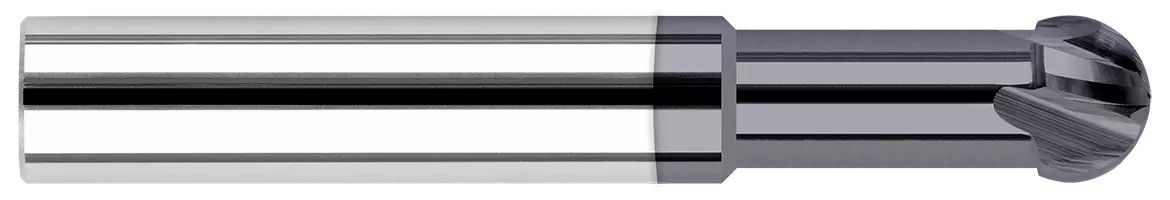

Harvey Tool 833812 | 0.1875" (3/16) Cutter DIA x 0.7500" (3/4) Neck Length x 220 Degree Carbide Undercutting End Mill, 4 Flutes

Brand:

Harvey Tool

Cutter Diameter (Inch):

3/16"

Cutter Diameter (Decimal Inch):

0.1875"

Neck Diameter (Decimal Inch):

0.1410"

Radius (Decimal Inch):

0.0938"

Number of Flutes:

4

Length of Cut (Decimal Inch):

0.1260"

Neck Length (Inch):

3/4"

Neck Length (Decimal Inch):

0.7500"

Overall Reach (Decimal Inch):

0.8750"

Overall Length (Inch):

2"

Overall Length (Decimal Inch):

2.0000"

Shank Diameter (Inch):

3/16"

Shank Diameter (Decimal Inch):

0.1875"

Shank Diameter (mm):

4.76mm

Finish/Coating:

Uncoated

SKU:

25179190

UPC:

Weight:

0.05 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
