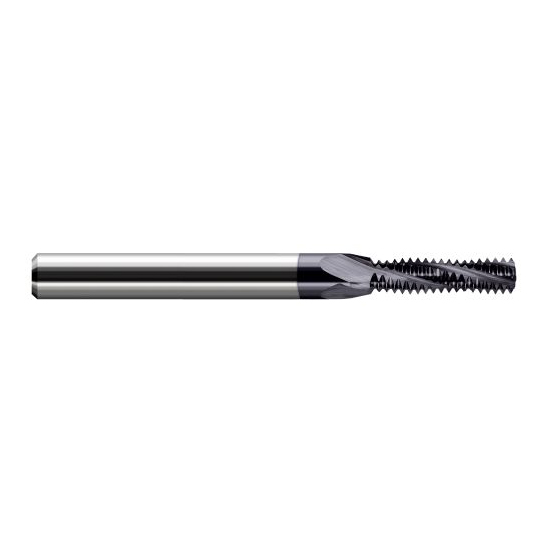

Harvey Tool 842929-C3 | M10-1.50 Thread 0.3110" Cutting Diameter 4FL AlTiN Coated Carbide Helical Flute Thread Mill

$298.20
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (mm):
M10-1.50
Cutter Diameter (Decimal Inch):
0.3110"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
4
Length of Cut (Decimal Inch):
1.1220"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119929
UPC:
Weight:
0.15 LBS
Shipping:
Free Shipping
Harvey Tool 842929-C3 | M10-1.50 Thread 0.3110" Cutting Diameter 4FL AlTiN Coated Carbide Helical Flute Thread Mill
Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree, metric threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size M10-1.50
Milling Diameter (Decimal Inch) 0.3110"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (Inch) 3/8"
Number of Flutes 4
Length of Cut (Decimal Inch) 1.1220"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Thread Size (mm):
M10-1.50
Cutter Diameter (Decimal Inch):
0.3110"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
4
Length of Cut (Decimal Inch):
1.1220"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
