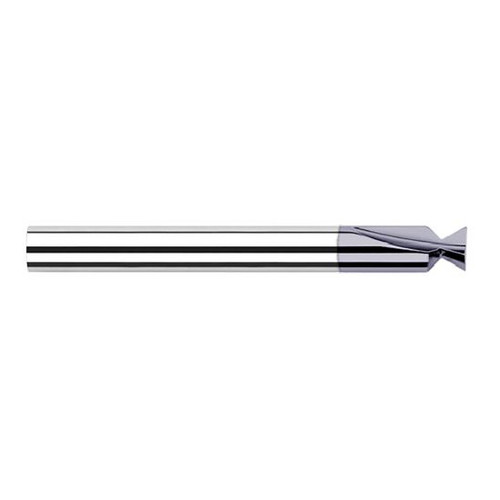

Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000" |
| Mill Diameter (Inch) | 1/2" |
| Neck Diameter (Decimal Inch) | 0.2550" |
| Length Of Cut (Decimal Inch) | 0.2500" |
| Length Of Cut (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Corner Radius (Decimal Inch) | 0.0300" |
| Angle Per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Metric | No |
| Coating | AlTiN |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Single or Double Angle | Single |
| Weldon (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
60 Degree
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2500"
Tip Radius:
0.0300"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
