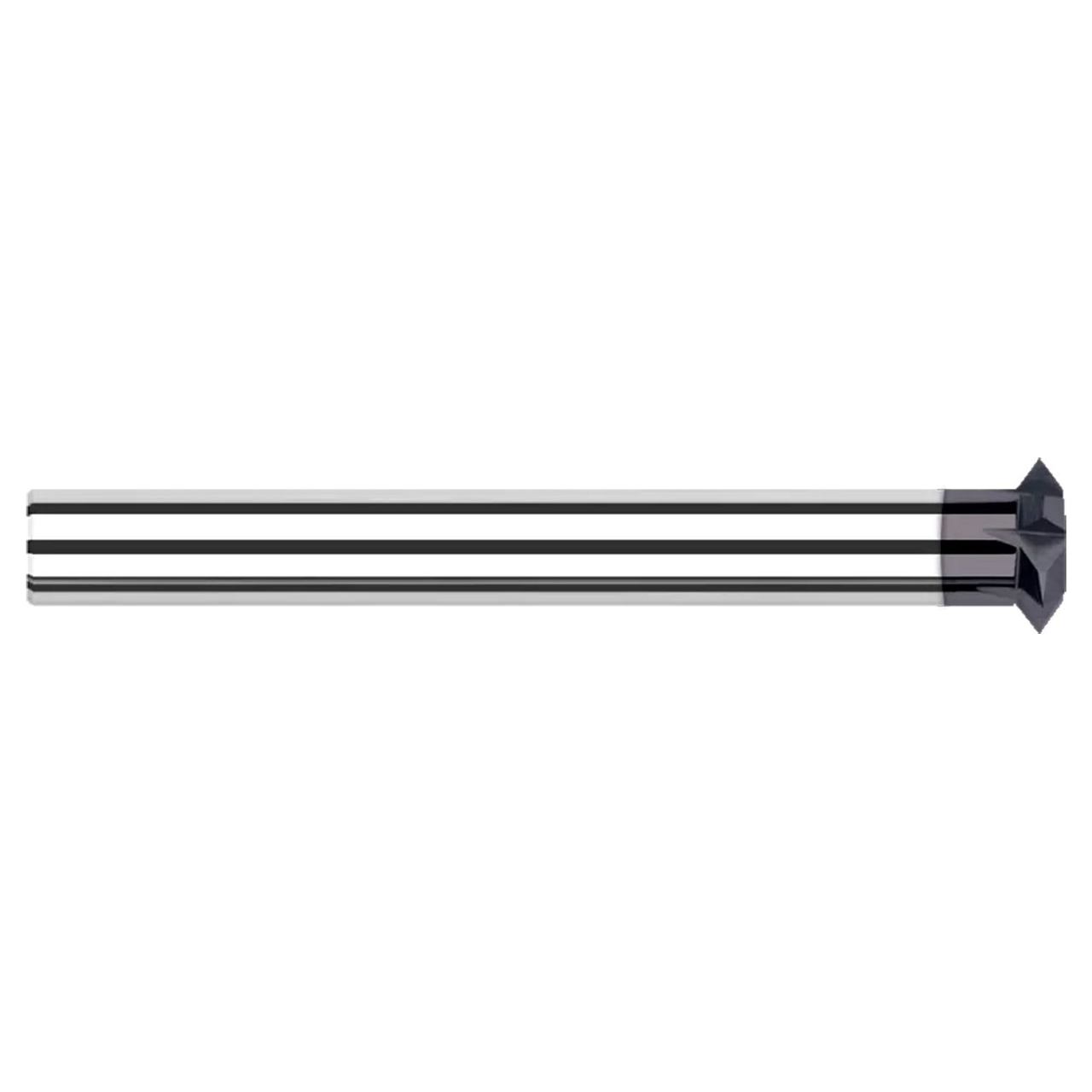

Harvey Tool 866405 | 0.3750" (3/8) Diameter x 0.1080" Width x 0.1875" (3/16) Shank x 60 Degree Uncoated Carbide Double Angle Cutter

$151.50
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Included Angle:
60 Degree
Number of Flutes:
8
Cutter Width (Decimal Inch):
0.1080"
Overall Length (Decimal Inch):
3.1080"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25232426
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part, Double Angle Shank Cutters - Pointed - Reduced Shank.

  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Reduced straight shank allows any chucking depth
  • Solid carbide head brazed onto steel shank
  • Tip of included angle ground to a point
  • CNC ground in the USA

Product Specifications
Tool Number866405
Cutter Diameter (Inch)0.3750" (3/8)
Cutter Width (Inch)0.1080"
Overall Length (Inch)3.1080"
Angle per Side30
Included Angle60
Flutes8
Shank Diameter (Inch)0.1875" (3/16)
CoatingUncoated
