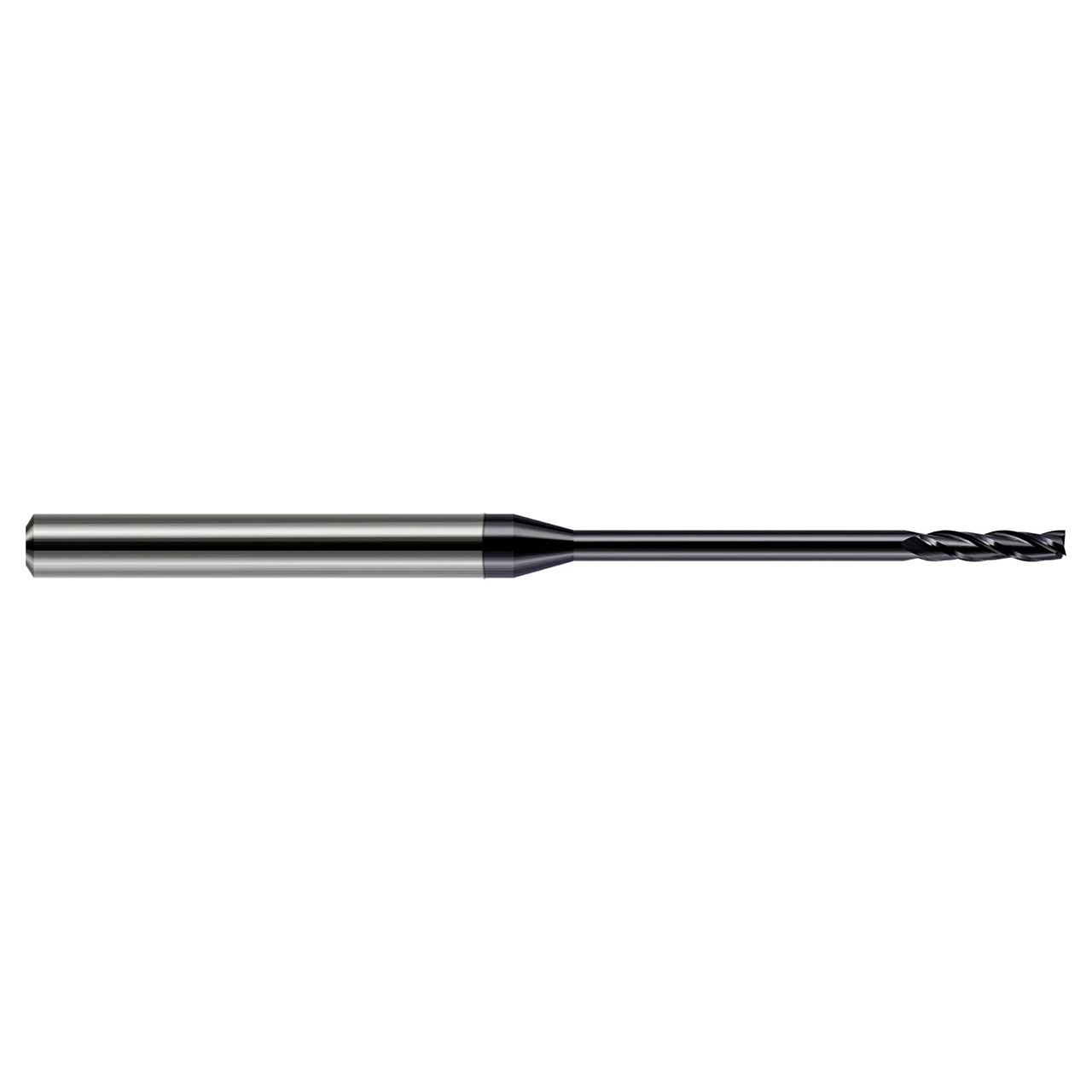

Optimized for deep cavity and deep pocket milling applications, miniature end mills - square - long reach, long flute feature a reduced neck diameter to avoid heeling, center cutting geometry, and solid carbide construction.
Features- Long length design for deep cavities
- Long flutes for deep pocket milling
- Length of cut is ≥ 5x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 867060-C3 |
| Cutter Diameter (Inch) | 0.0600" |
| Neck Diameter (Inch) | 0.0585" |
| Length of Cut (Inch) | 0.3125" (5/16) |
| Overall Reach (Inch) | 0.7200" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 3 |
| LOC Multiple | (5x) |
| Reach Multiple | (12x) |
| Coating | C3 |
| Profile | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0585"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Overall Reach (Decimal Inch):
0.7200"
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
