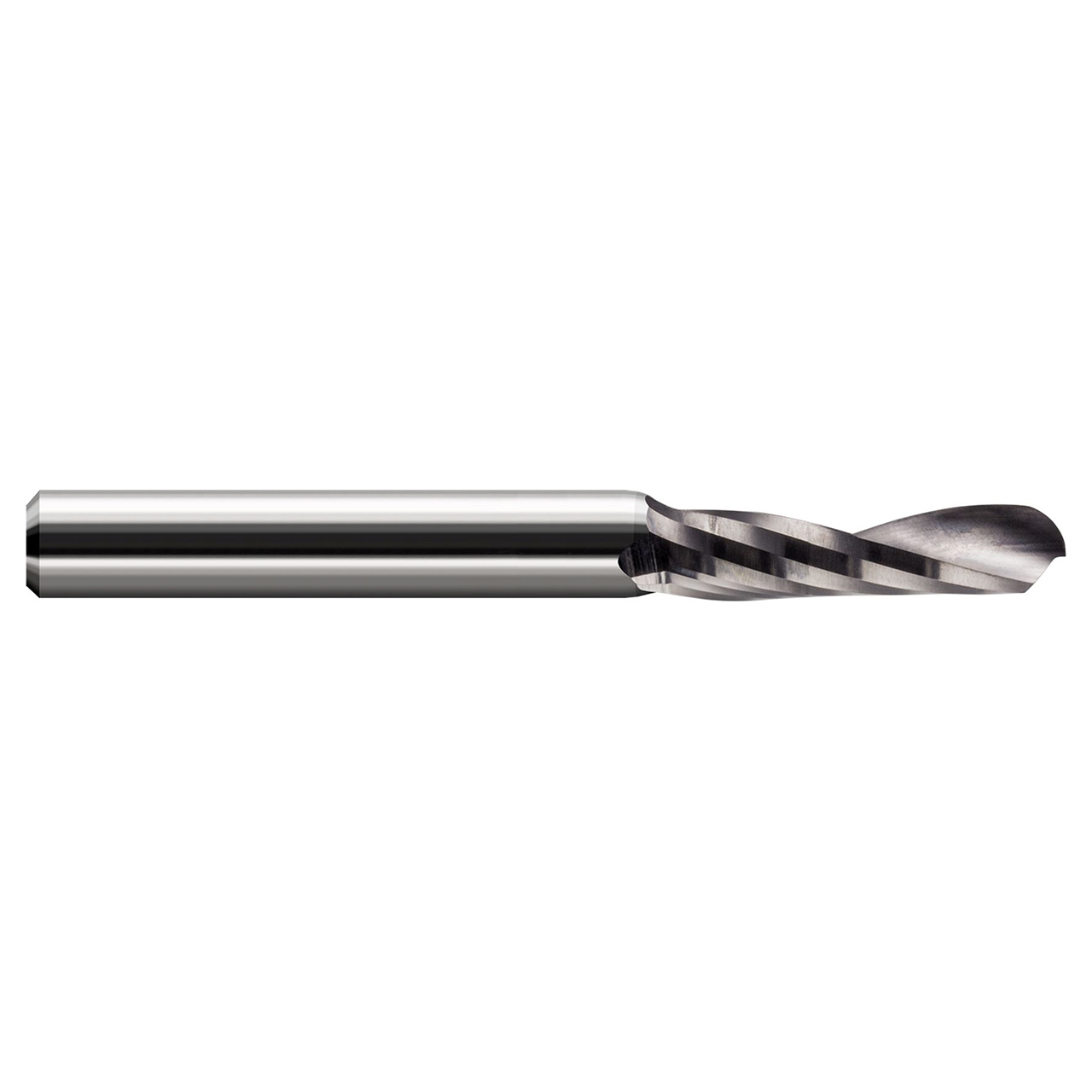

This solid carbide single flute ball upcut end mill for plastics has been designed by Harvey Tool with a large flute valley to create room for maximized chip evacuation, while producing an excellent finish on plastics containing fiber-reinforced materials.
Features- Design allows for maximum stock removal while maintaining excellent finish
- High rake, high relief design produces sharper edge for improved shearing action while transferring heat into the chip
- Large flute valley creates room for the chip and aids in chip evacuation
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- High flute finish resists chip welding
- Will ramp or plunge if required
- Right hand spiral, right hand cut
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 869632 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Number of Flutes | 1 |
| LOC Multiple | (3x) |
| Coating | Uncoated |
| Profile | Ball |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/2"
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Number of Flutes:
1
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
