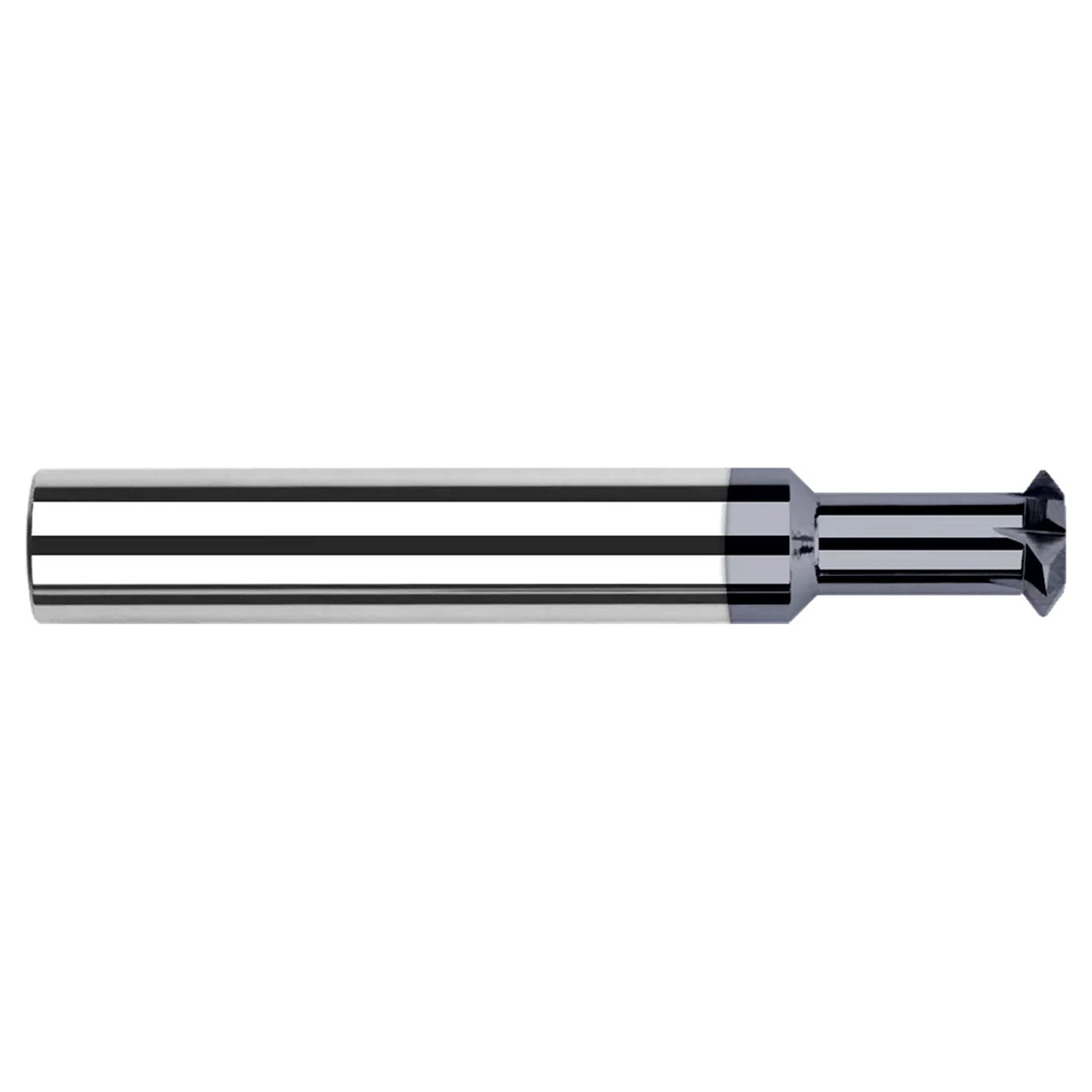

The tip radius on this Harvey Tool offering of Double Angle Shank Cutters improves strength and wear resistance.
- Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
- Radius on tip for improved strength and wear resistance
- Reduced neck for long reach machining
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 890720 |
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Neck Diameter (Inch) | 0.1870" (3/16) |
| Cutter Width (Inch) | 0.1340" |
| Neck Length (Inch) | 0.8750" (7/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radius (Inch) | 0.0100" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 6 |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3125"
Neck Diameter (Inch):
3/16"
Neck Diameter (Decimal Inch):
0.1870"
Radius (Decimal Inch):
0.0100"
Included Angle:
90 Degree
Number of Flutes:
6
Cutter Width (Decimal Inch):
0.1340"
Neck Length (Inch):
7/8"
Neck Length (Decimal Inch):
0.8750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
Uncoated
