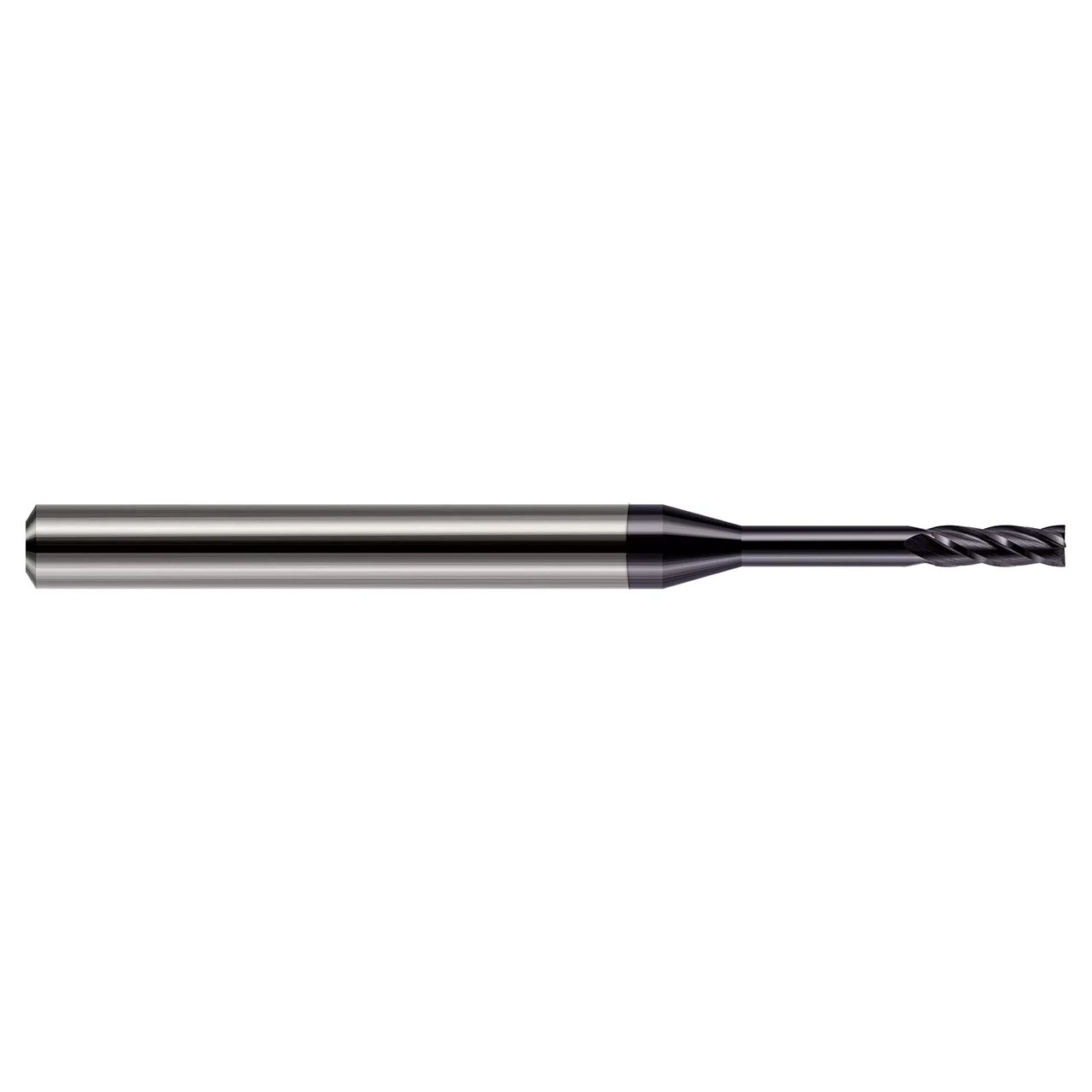

Harvey Tool 896815-C3 | 0.0150" (1/64) Cutter Diameter x 0.0450" LOC x 0.1090" (7/64) Reach 4 Flute C3 Coated Square End Mill

$51.40
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0142"
Shank Diameter (Inch):
1/8"
Length of Cut (Decimal Inch):
0.0450"
Overall Reach (Inch):
7/64"
Overall Reach (Decimal Inch):
0.1090"
Number of Flutes:
4
Finish/Coating:
C3
Neck Length (Decimal Inch):
0.0640"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25256987
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Miniature end mills - square - long reach, standard flute feature a reduced neck diameter to avoid heeling.

Features
  • Length of Cut = 3x Diameter
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number896815-C3
Cutter Diameter (Inch)0.0150" (1/64)
Neck Diameter (Inch)0.0142"
Length of Cut (Inch)0.0450"
Overall Reach (Inch)0.1090" (7/64)
Overall Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.1250" (1/8)
Number of Flutes4
LOC Multiple(3x)
Reach Multiple(7x)
CoatingC3
ProfileSquare

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
