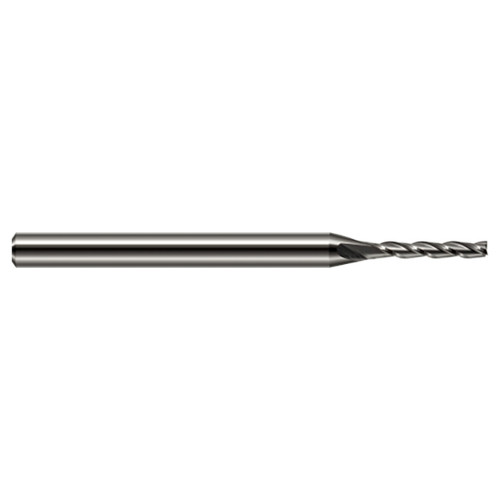

Harvey Tool 898747 | 3/64" Diameter x 1/8" Shank x 0.1410" LOC x 1-1/2" OAL 2 Flute Uncoated Coated Square End Mill

$38.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
3/64"
Mill Diameter (Decimal Inch):
0.0470"
Number of Flutes:
2
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.1410"
Overall Reach (Inch):
21/64"
Overall Reach (Decimal Inch):
0.3280"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Center Cutting:
No
Ships:
From Partner Facility
SKU:
25166505
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 3/64"
Cutter Diameter (Decimal Inch) 0.0470"
Neck Diameter (Decimal Inch) 0.0455"
Length of Cut (Decimal Inch) 0.1410"
Overall Reach (Inch) 21/64"
Overall Reach (Decimal Inch) 0.3280"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.5000"
Number of Flutes 2
LOC Multiple 3x
Reach Multiple 7x
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating Uncoated
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
