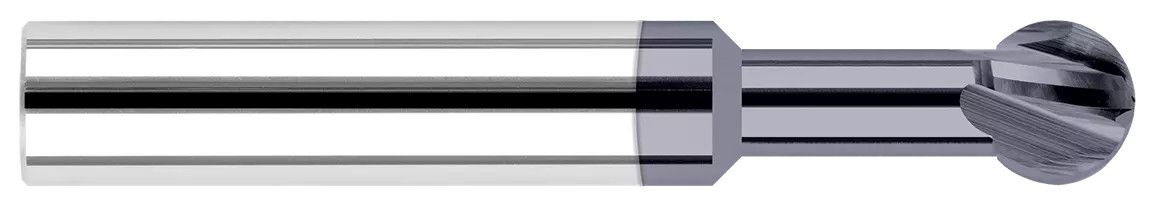

Harvey Tool 905116-C3 | 0.2500" (1/4) Cutter DIA x 0.3120" (5/16) Neck Length x 270 Degree Carbide Undercutting End Mill, 4 Flutes, AlTiN Coated

Brand:

Harvey Tool

Cutter Diameter (Inch):

1/4"

Cutter Diameter (Decimal Inch):

0.2500"

Neck Diameter (Decimal Inch):

0.1580"

Radius (Inch):

1/8"

Radius (Decimal Inch):

0.1250"

Number of Flutes:

4

Length of Cut (Decimal Inch):

0.2130"

Neck Length (Inch):

5/16"

Neck Length (Decimal Inch):

0.3120"

Overall Reach (Decimal Inch):

0.5250"

Overall Length (Inch):

2-1/2"

Overall Length (Decimal Inch):

2.5000"

Shank Diameter (Inch):

1/4"

Shank Diameter (Decimal Inch):

0.2500"

Shank Diameter (mm):

6.35mm

Finish/Coating:

C3

SKU:

25179203

UPC:

Weight:

0.06 LBS

Shipping:

Calculated at Checkout
