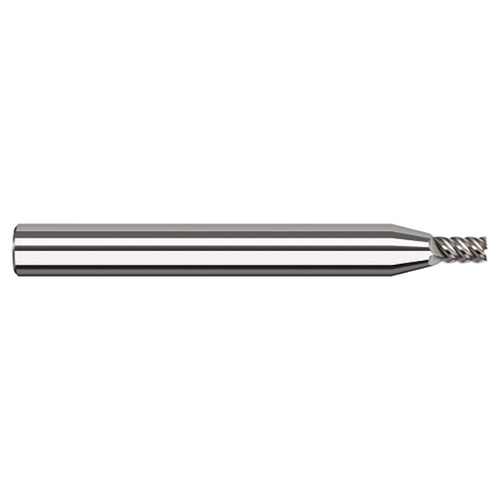

Harvey Tool 919412-C8 | 3/16" Diameter x 3/16" Shank x 0.2850" LOC x 4" OAL 3 Flute TiB2 Coated Square End Mill For Aluminum Alloys

$65.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1870"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
TiB2
Length of Cut (Decimal Inch):
0.2850"
Overall Reach (Inch):
1-7/8"
Overall Reach (Decimal Inch):
1.8750"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Application:
Aluminum Alloys
Center Cutting:
No
Ships:
From Partner Facility
SKU:
25166746
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 3/16"
Cutter Diameter (Decimal Inch) 0.1870"
Neck Diameter (Decimal Inch) 0.1830"
Length of Cut (Decimal Inch) 0.2850"
Overall Reach (Inch) 1-7/8"
Overall Reach (Decimal Inch) 1.8750"
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.0000"
Number of Flutes 3
LOC Multiple 1.5x
Reach Multiple 10x
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating TiB2
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
