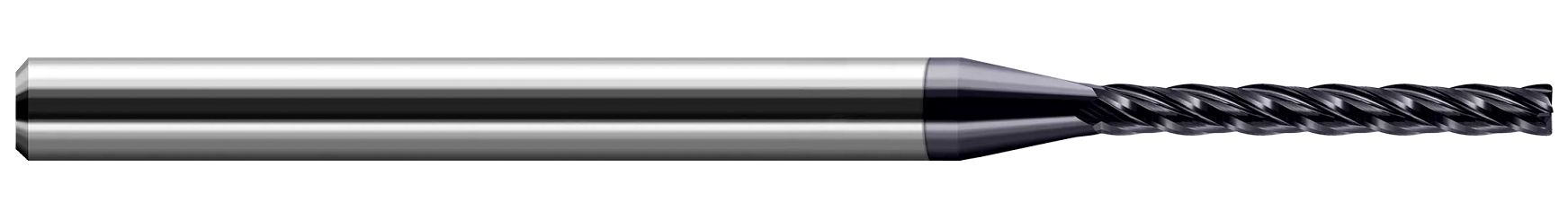

Harvey Tool 932450 | 3/16" Diameter x 3/16" Shank x 1" LOC x 3" OAL 0.0400" Radius 4 Flute Uncoated Carbide Corner Radius End Mill

$38.80
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Corner Radius (Decimal Inch):
0.0400"
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
SKU:
25186048
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.

  • Corner radius for improved strength
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Length of Cut (Inch)1.0000" (1)
Overall Length (Inch)3.0000" (3)
Number of Flutes4
Corner Radius0.0400"
LOC Multiple5x
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishUncoated

Technical Files

Safety Data Sheet North America (SDS NA)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
