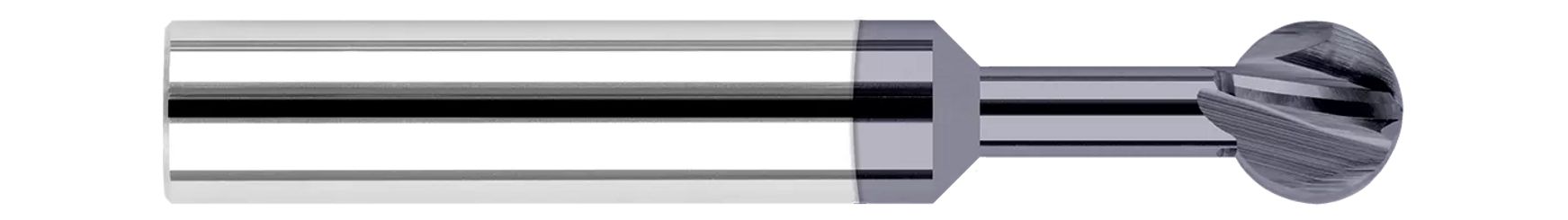

The 270 Degree spherical ball on this solid carbide Undercutting End Mill is ideal for deburring complex shapes, and multi-axis machining. Deburr right in your CNC machine with these high-precision burs held to end mill tolerances, and stop scrapping expensive parts due to handheld operator errors.
- 270 Degree spherical ball is ideal for deburring complex shapes and multi-axis machining
- Deburr in your CNC machine with these high-precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle times
- Achieve better finish than with milling-type cutters
- Double cut style flute pattern
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.0820" |
| Length of Cut (Inch) | 0.1740" |
| Neck Length (Inch) | 0.1870" (3/16) |
| Overall Reach (Inch) | 0.3610" |
| Overall Length (Inch) | 2.0000" (2) |
| Radius | 0.0938" |
| Number of Flutes | 4 |
| Wrap Angle | 300 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Neck Diameter (Decimal Inch):
0.0820"
Radius (Decimal Inch):
0.0938"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.1740"
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1870"
Overall Reach (Decimal Inch):
0.3610"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
C3
