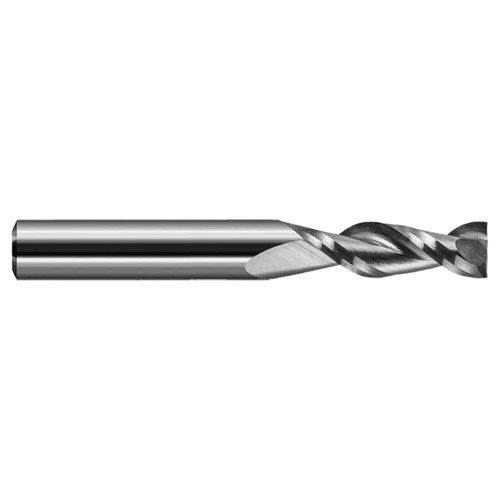

CNC ground in the USA from solid carbide, this fully stocked Harvey Tool offering of End Mills for Plastics - Square Upcut - 2 Flute features a slower helix (of approximately 20°) for minimized lifting forces, preferable for vacuum table setups.
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- High rake, high relief design with large flute valley maximizes chip removal and performance
- 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
- Center cutting design improves plunging and ramping
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 938962-C4 |
| Cutter Diameter (Inch) | 0.0625" (1/16) |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Flutes | 2 |
| LOC Multiple | 10x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Number of Flutes:
2
Finish/Coating:
C4
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
interval quantity:
1
