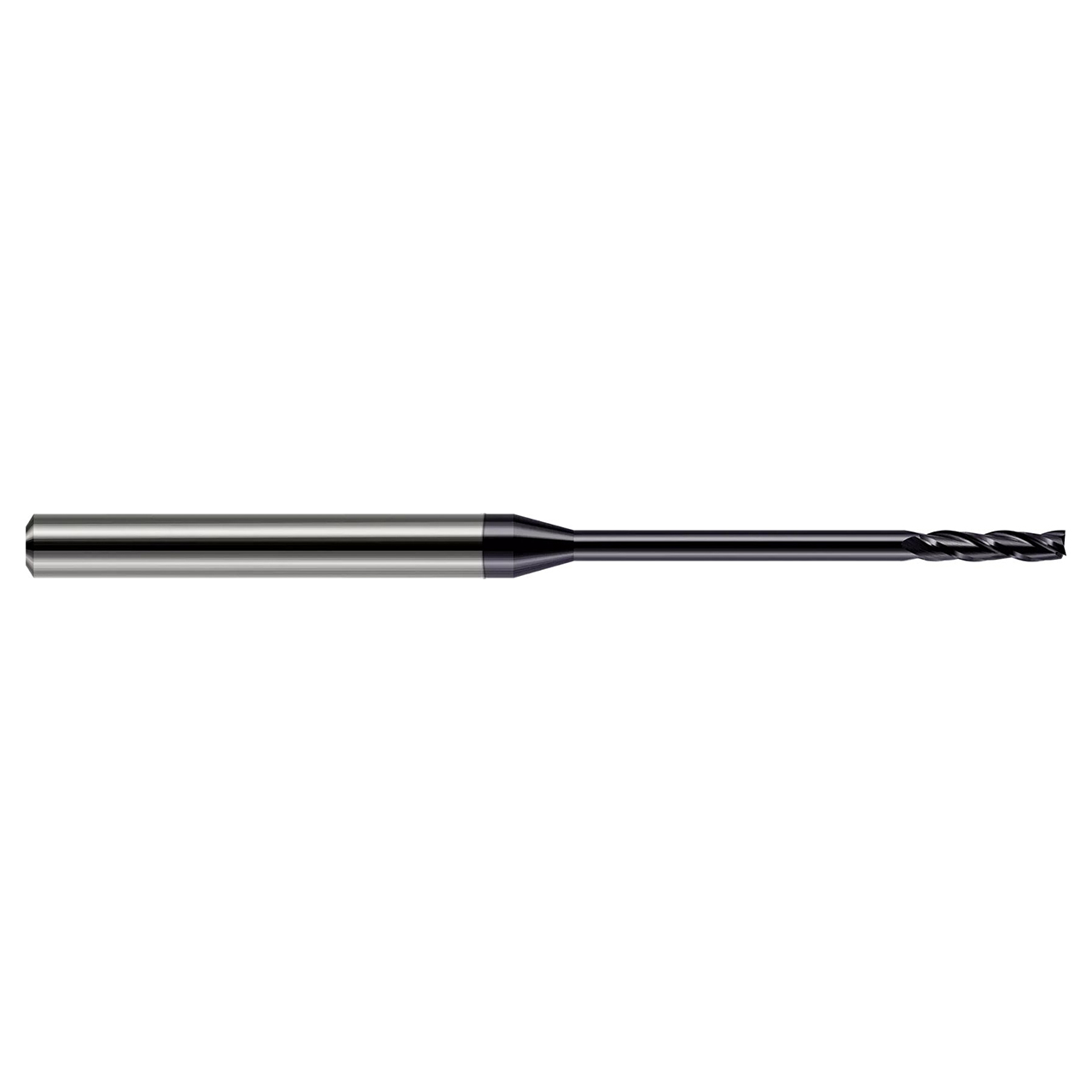

Optimized for deep cavity and deep pocket milling applications, miniature end mills - square - long reach, long flute feature a reduced neck diameter to avoid heeling, center cutting geometry, and solid carbide construction.
Features- Long length design for deep cavities
- Long flutes for deep pocket milling
- Length of cut is ≥ 5x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 956409 |
| Cutter Diameter (Inch) | 0.1406" (9/64) |
| Neck Diameter (Inch) | 0.1360" |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Reach (Inch) | 1.4500" |
| Overall Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Number of Flutes | 3 |
| LOC Multiple | (5x) |
| Reach Multiple | (10x) |
| Coating | Uncoated |
| Profile | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1360"
Shank Diameter (Inch):
3/16"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Overall Reach (Decimal Inch):
1.4500"
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
