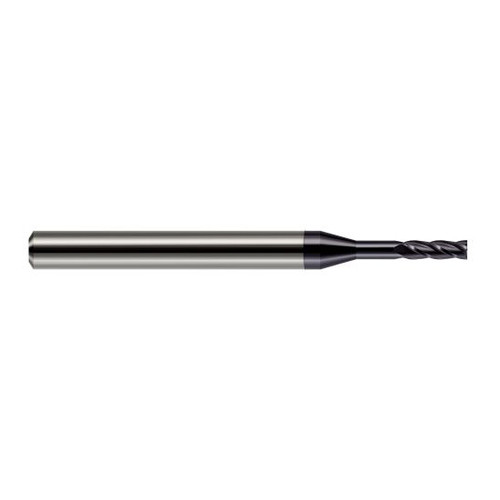

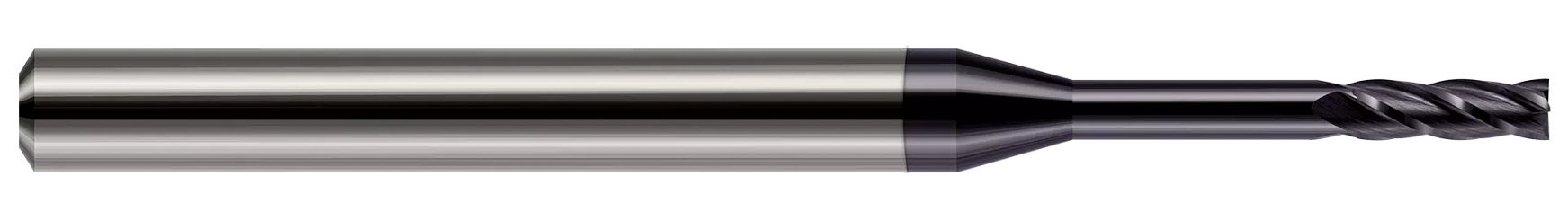

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.
- Router style shank and tight overall length for quick and consistent tool changes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0780" (5/64) |
| Neck Diameter (Inch) | 0.0765" |
| Length of Cut (Inch) | 0.2340" (15/64) |
| Neck Length (Inch) | 0.1720" (11/64) |
| Overall Reach (Inch) | 0.4060" (13/32) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0765"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2340"
Overall Reach (Inch):
13/32"
Overall Reach (Decimal Inch):
0.4060"
Number of Flutes:
4
Finish/Coating:
C3
Neck Length (Inch):
11/64"
Neck Length (Decimal Inch):
0.1720"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
