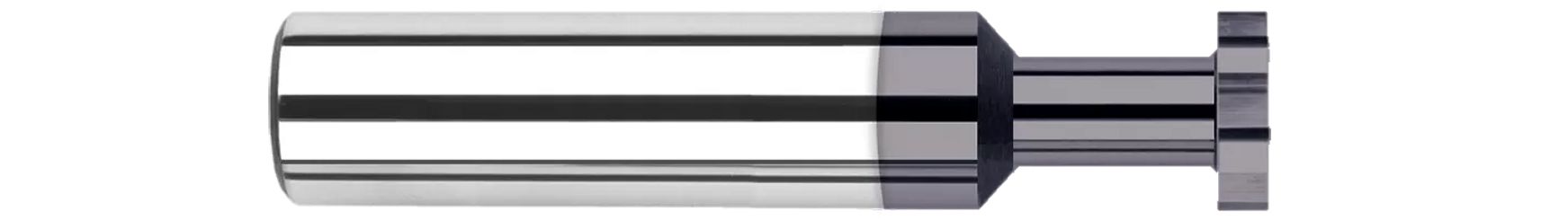

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Keyseat Cutters Down to 1/16" Diameter
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.0500" |
| Cutter Width (Inch) | 0.0470" (3/64) |
| Neck Length (Inch) | 0.0780" (5/64) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radial Depth of Cut (Inch) | 0.0920" |
| Number of Flutes | 8 |
| Reach Multiple | 0.3x |
| Type | III |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Decimal Inch):
0.0500"
Number of Flutes:
8
Cutter Width (Inch):
3/64"
Cutter Width (Decimal Inch):
0.0470"
Neck Length (Inch):
5/64"
Neck Length (Decimal Inch):
0.0780"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C3
