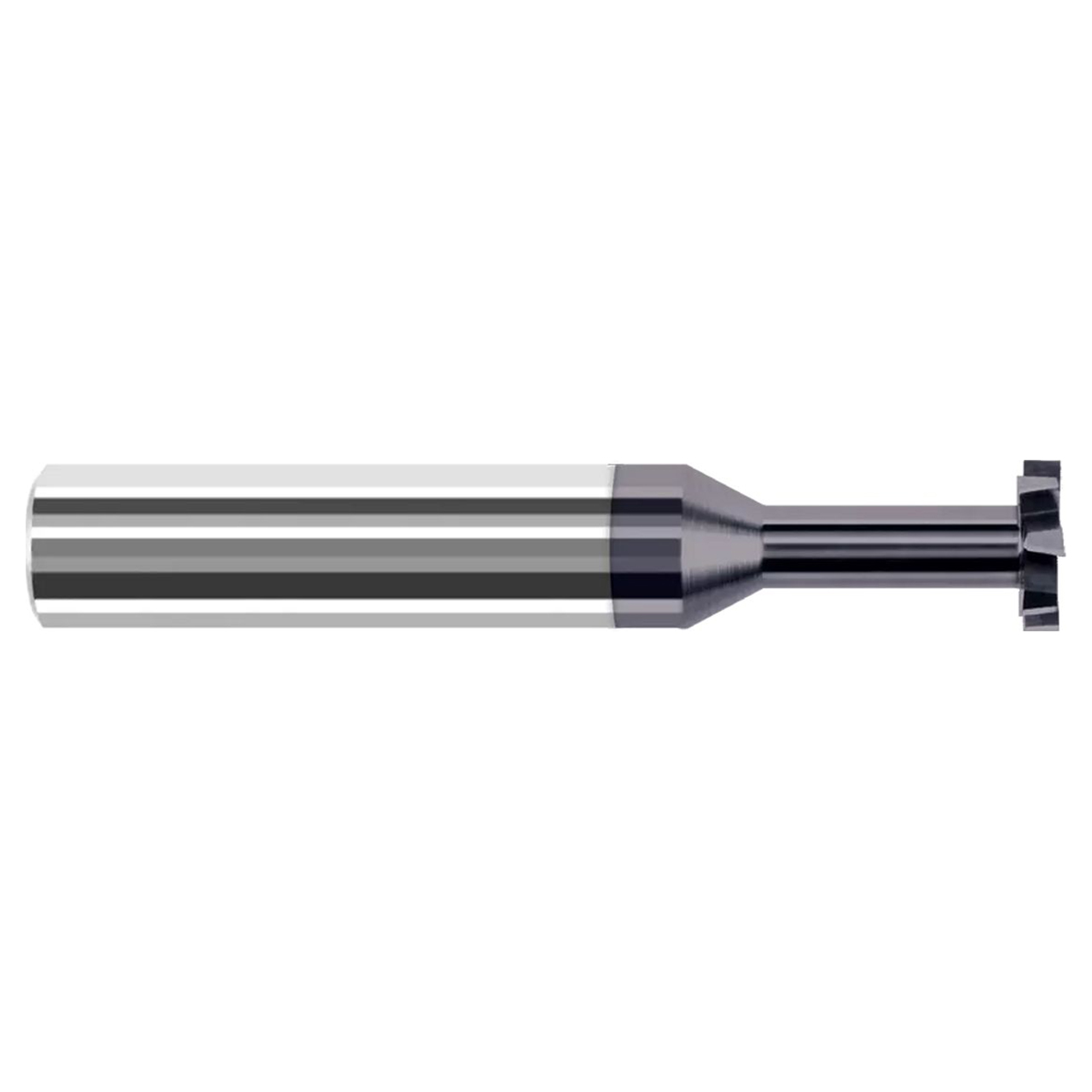

Harvey Tool 969893-C3 | 0.1250" (1/8) Diameter x 0.0930" (3/32) Width 0.1250" (1/8) Shank AlTiN Coated Carbide Staggered Tooth Keyseat Cutter

$79.70
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Inch):
1/16"
Neck Diameter (Decimal Inch):
0.0620"
Number of Flutes:
6
Cutter Width (Inch):
3/32"
Cutter Width (Decimal Inch):
0.0930"
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1870"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
SKU:
25211737
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
  • Relieved to allow cutting on both sides of head
  • Tool can be offset to increase width of groove
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number969893-C3
Cutter Diameter (Inch)0.1250" (1/8)
Neck Diameter (Inch)0.0620" (1/16)
Cutter Width (Inch)0.0930" (3/32)
Neck Length (Inch)0.1870" (3/16)
Overall Length (Inch)1.5000" (1-1/2)
Radial Depth of Cut (Inch)0.0220"
Flutes6
Reach Multiple1.5x
TypeI
Shank Diameter (Inch)0.1250" (1/8)
CoatingC3
