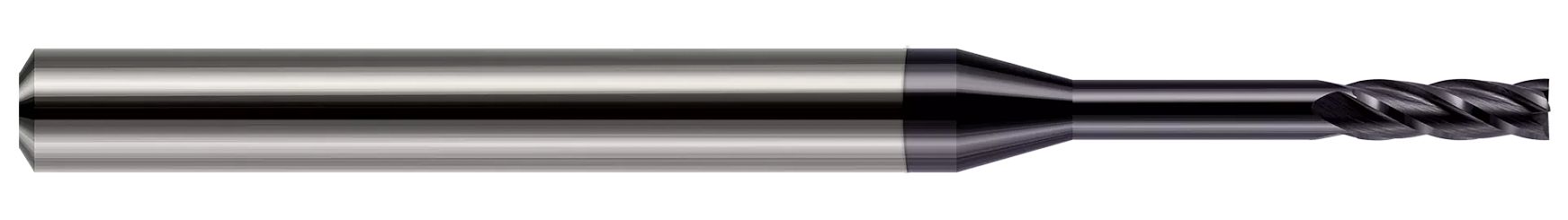

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.
- Router style shank and tight overall length for quick and consistent tool changes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Neck Diameter (Inch) | 0.3700" |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| Neck Length (Inch) | 1.8750" (1-7/8) |
| Overall Reach (Inch) | 3.0000" (3) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.3700"
Shank Diameter (Inch):
3/8"
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Overall Reach (Inch):
3"
Overall Reach (Decimal Inch):
3.0000"
Number of Flutes:
4
Finish/Coating:
Uncoated
Neck Length (Inch):
1-7/8"
Neck Length (Decimal Inch):
1.8750"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
