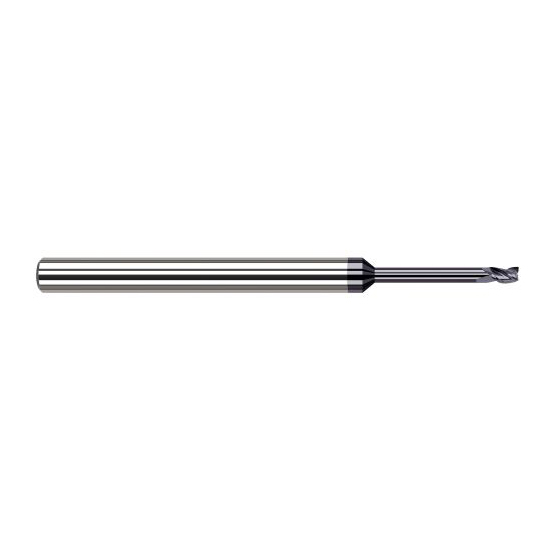

Product Specifications
| Cutter Diameter (Decimal Inch) | 0.0930" |
| Cutter Diameter (Inch) | 3/32" |
| Neck Diameter (Decimal Inch) | 0.0915" |
| Length Of Cut (Decimal Inch) | 0.1400" |
| Length Of Cut (Inch) | 9/64" |
| Overall Reach (Decimal Inch) | 0.7500" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 3 |
| LOC Multiple | 1.5x |
| Reach Multiple | 8x |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Metric (Yes/No) | No |
| Finish/Coating | AlTiN Nano |
| Center Cutting (Yes/No) | Yes |
| Double or Single End | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
3/32"
Mill Diameter (Decimal Inch):
0.0930"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
AlTiN Nano
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Shank Type:
Reduced
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Application:
Exotic Alloys
Center Cutting:
Yes
Ships:
From Partner Facility
