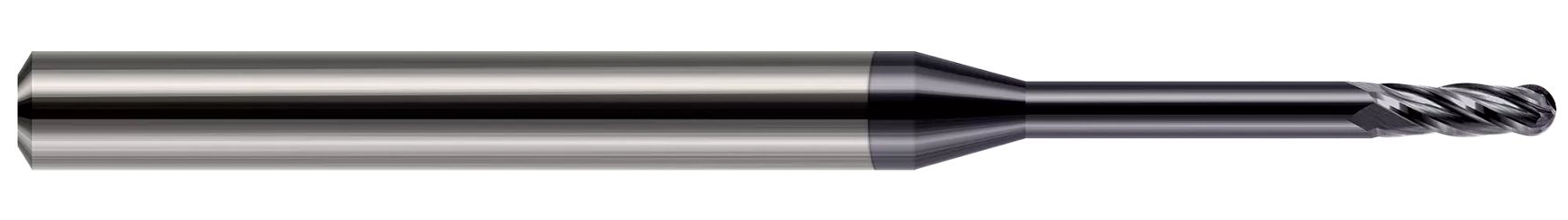

Harvey Tool 982910-C3 | 5/32" Diameter x 3/16" Shank x 0.4700" LOC x 2" OAL 4 Flute AlTiN Coated Carbide Ball End Mill

$56.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25185934
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1562" (5/32)
Neck Diameter (Inch)0.1520"
Length of Cut (Inch)0.4700"
Overall Reach (Inch)0.7500" (3/4)
Overall Length (Inch)2.0000" (2)
Number of Flutes4
LOC Multiple3x
Reach Multiple5x
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishC3
